SKU: 1-001A-00655

RADIAL HOSE REEL, HOSE and options


REEL

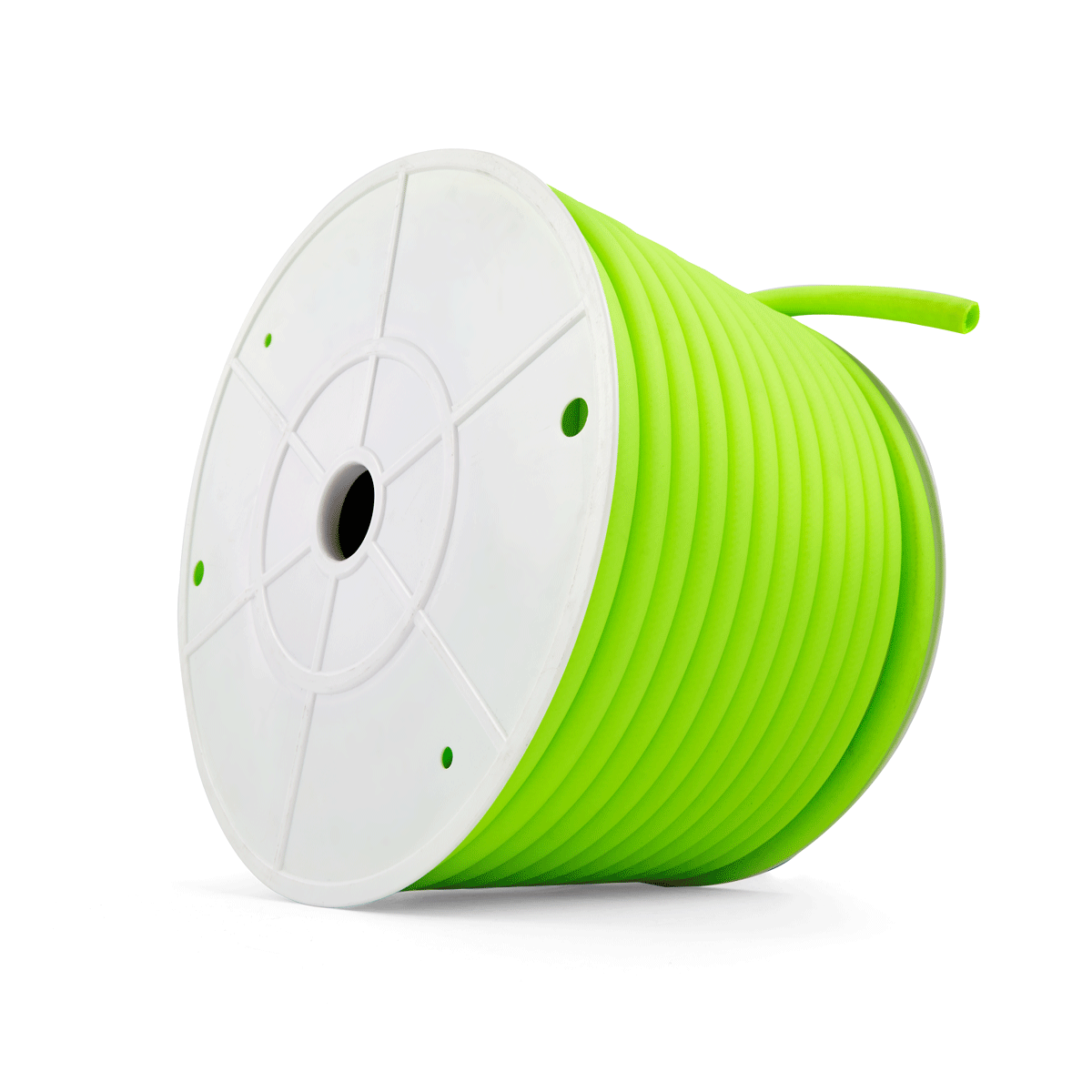

150FT RADIAL HOSE (5/8" OD)

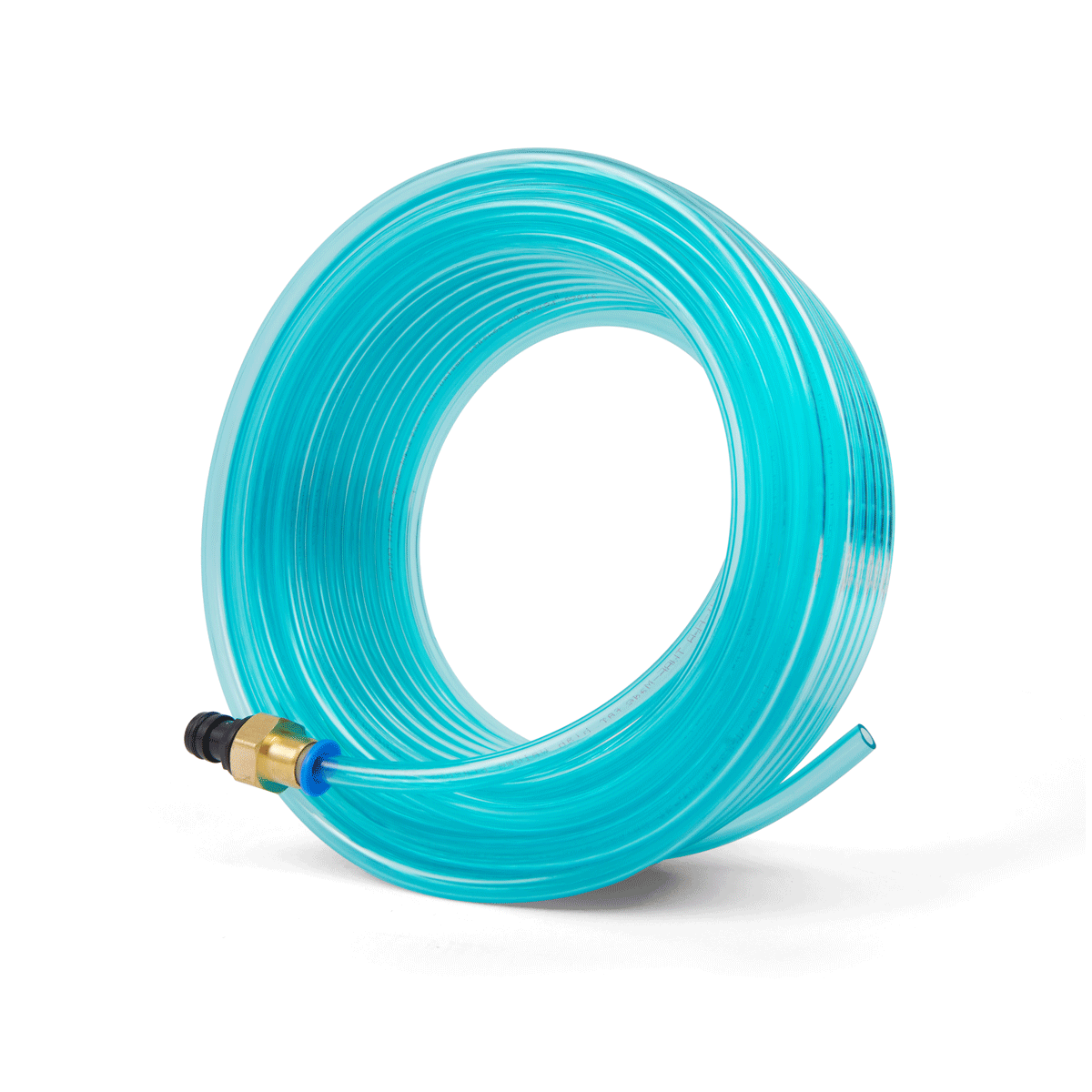

75FT RADIAL HI-FLO TUBE

Sale price

Regular price €287,24
( / )

Click here to be notified by email when RADIAL HOSE REEL, HOSE and options becomes available.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

NOTE : THIS REEL/ HOSE PRODUCT is PRE-ORDER status again, as we sold out of the first shipments.  Delivery in Australia, call Peter Thomas on 0417 979 767, and the next delivery for USA addresses (only) will be in May 2022.  We have stock of the HOSE in USA.

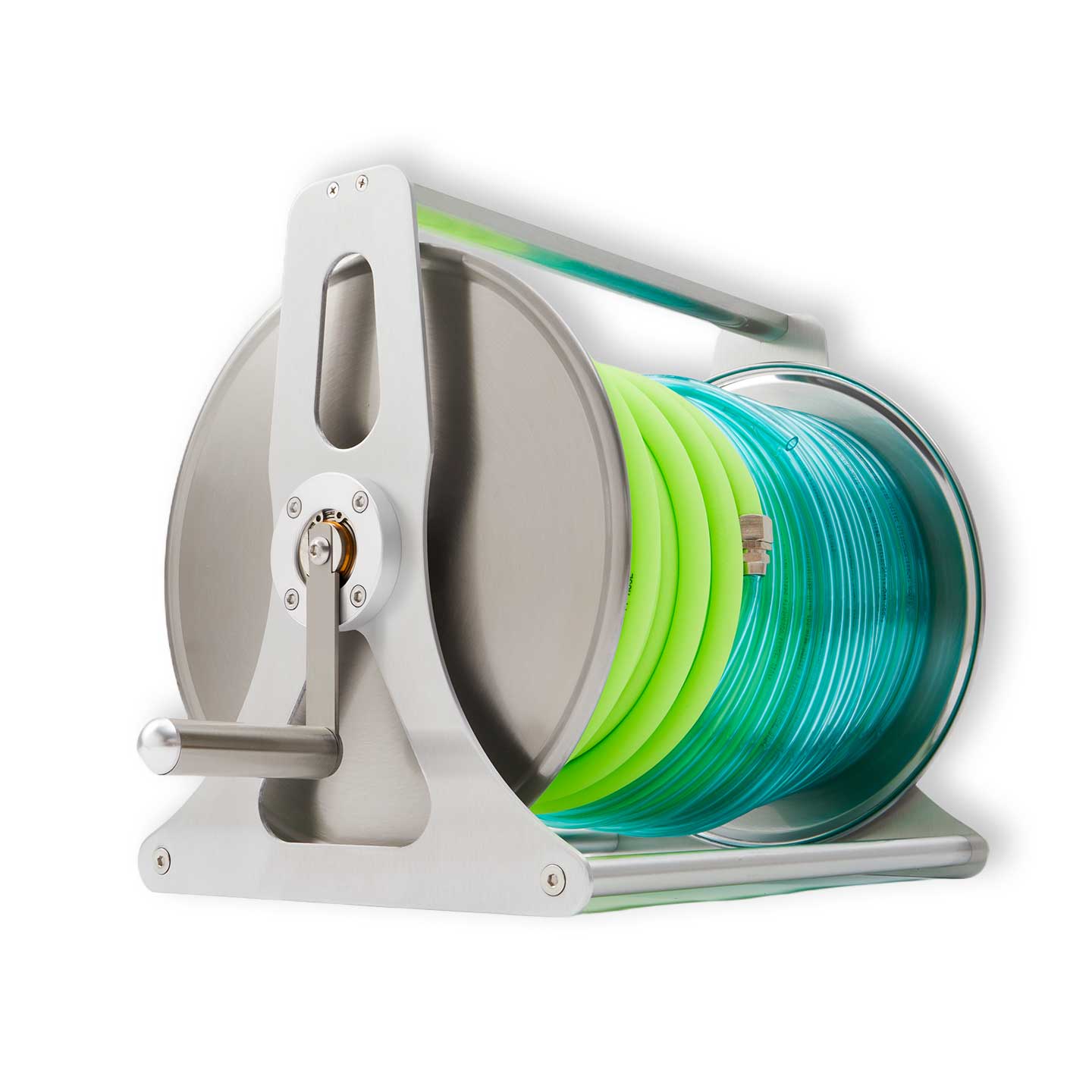

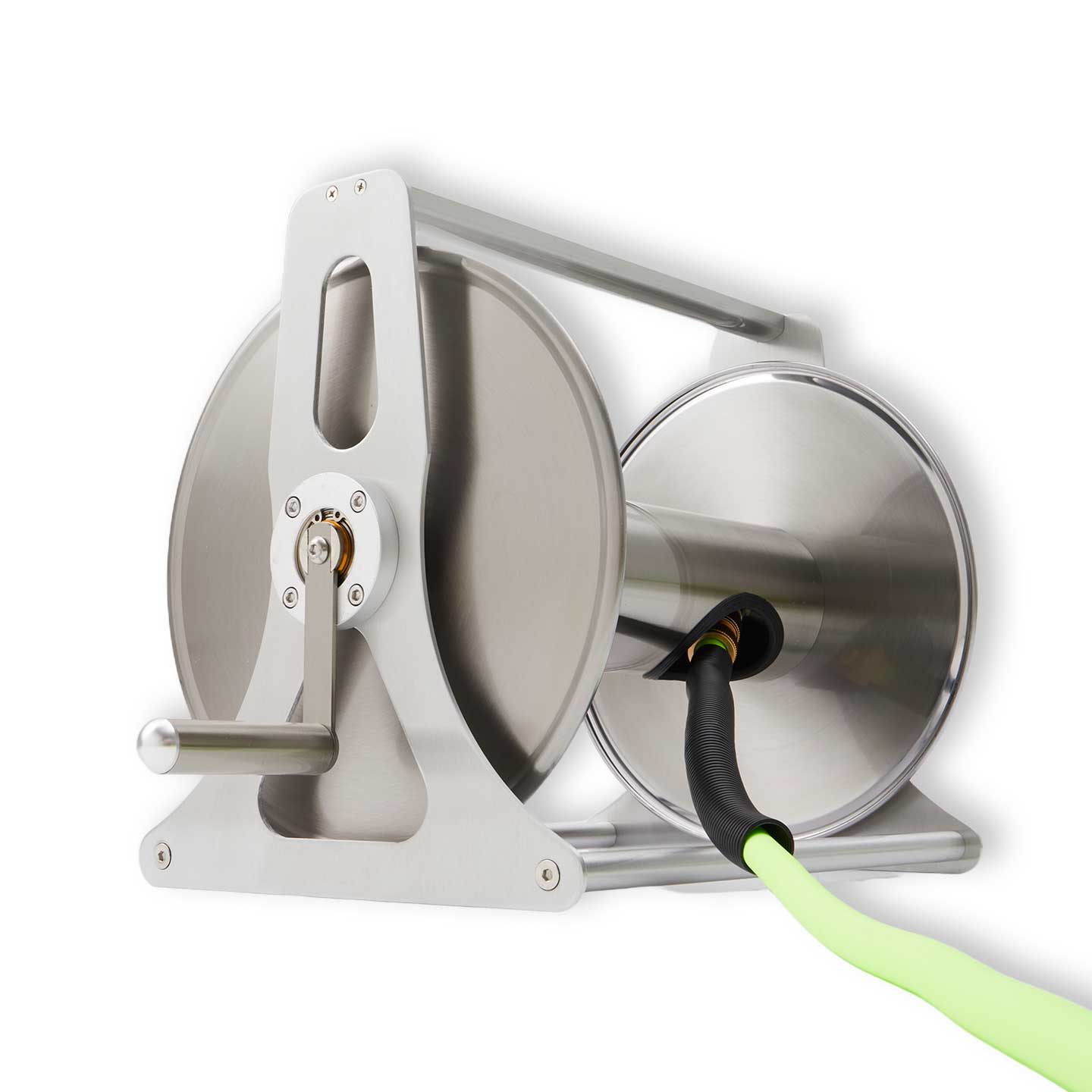

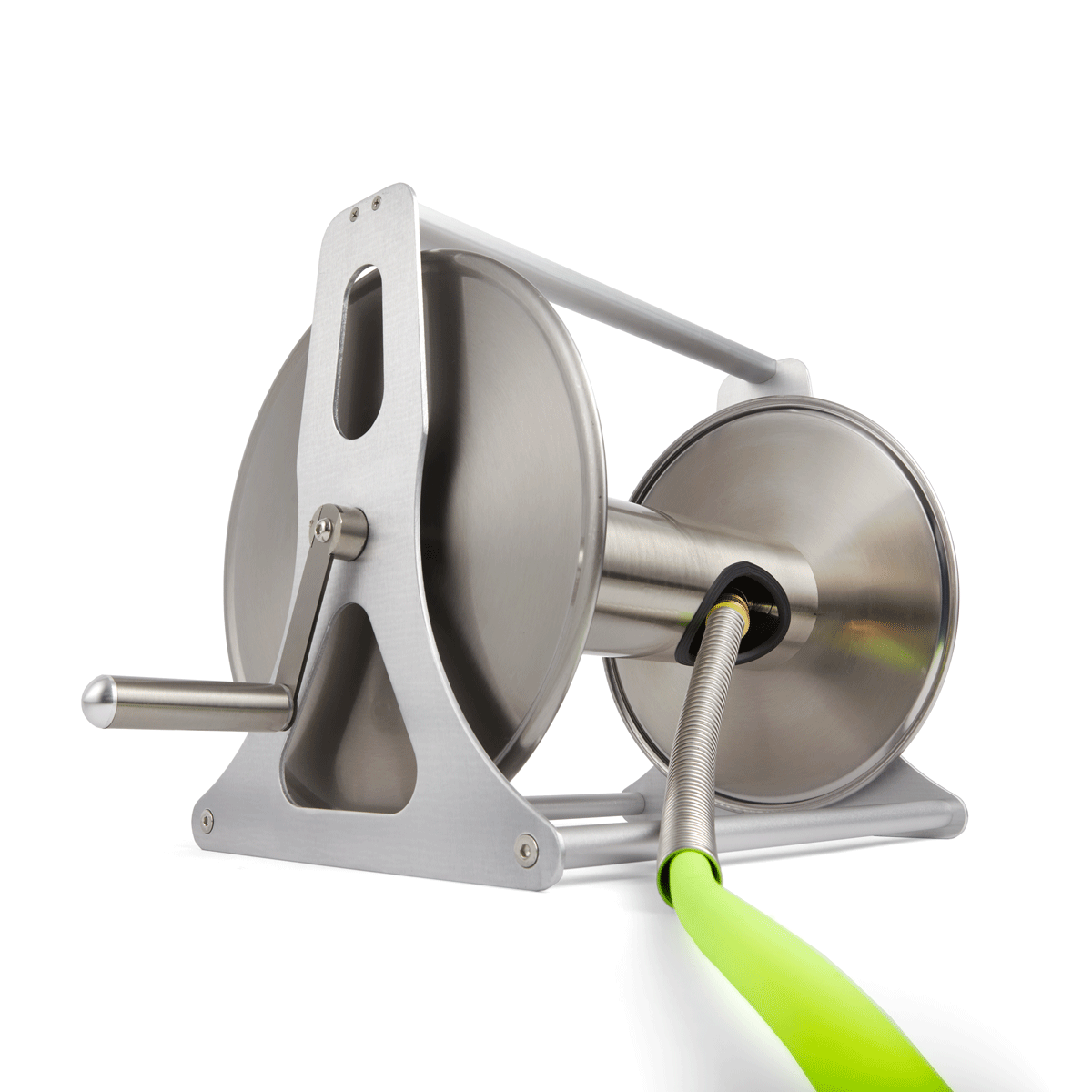

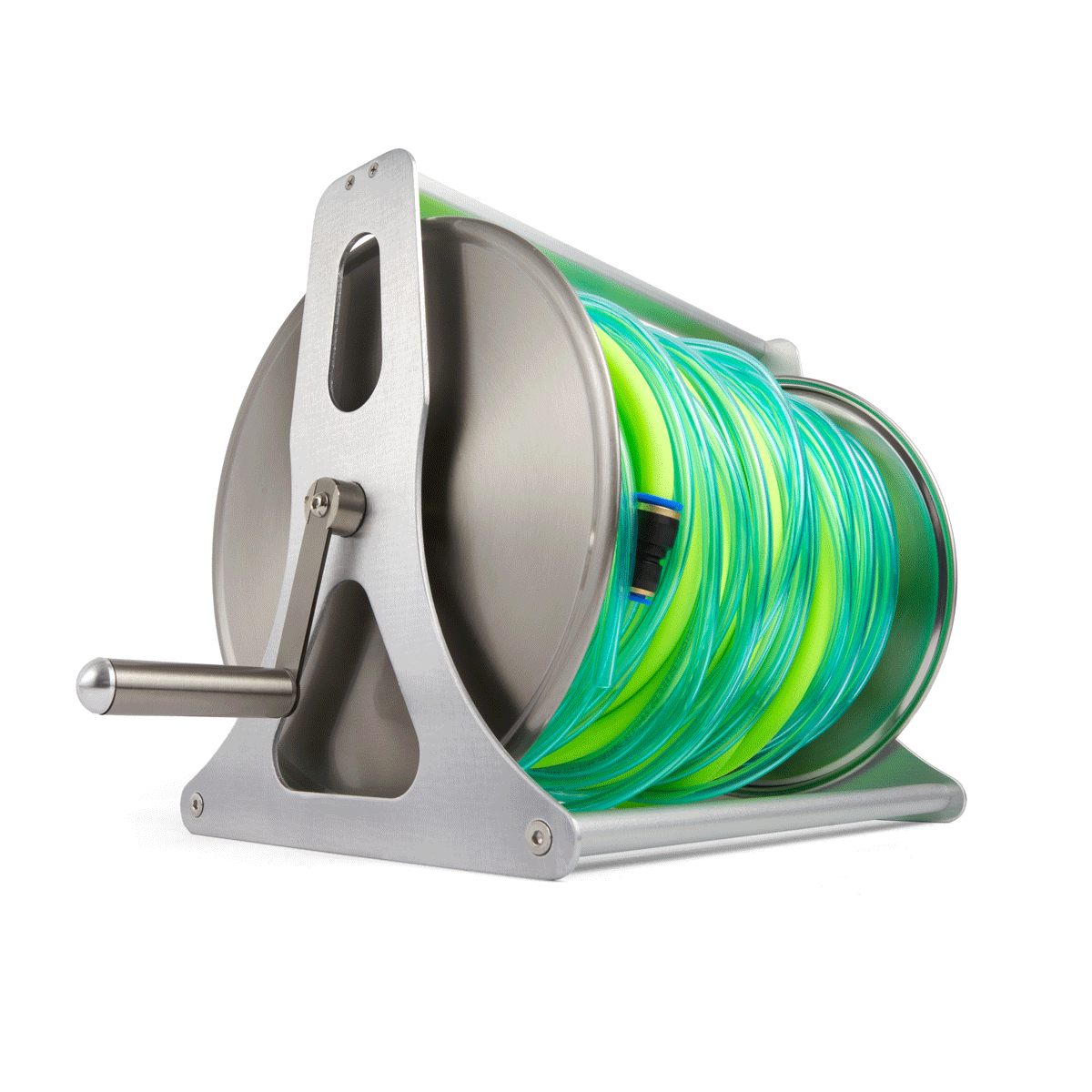

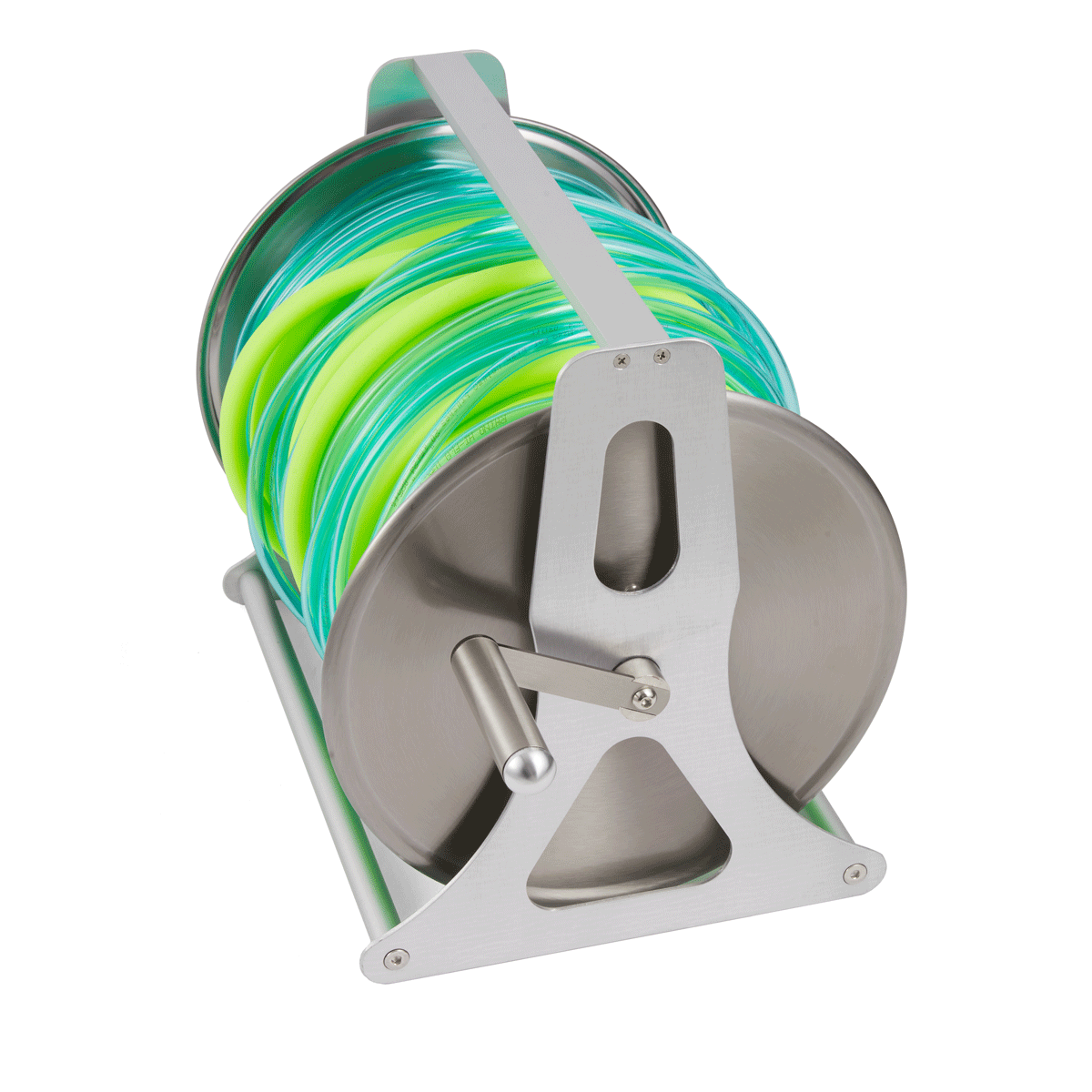

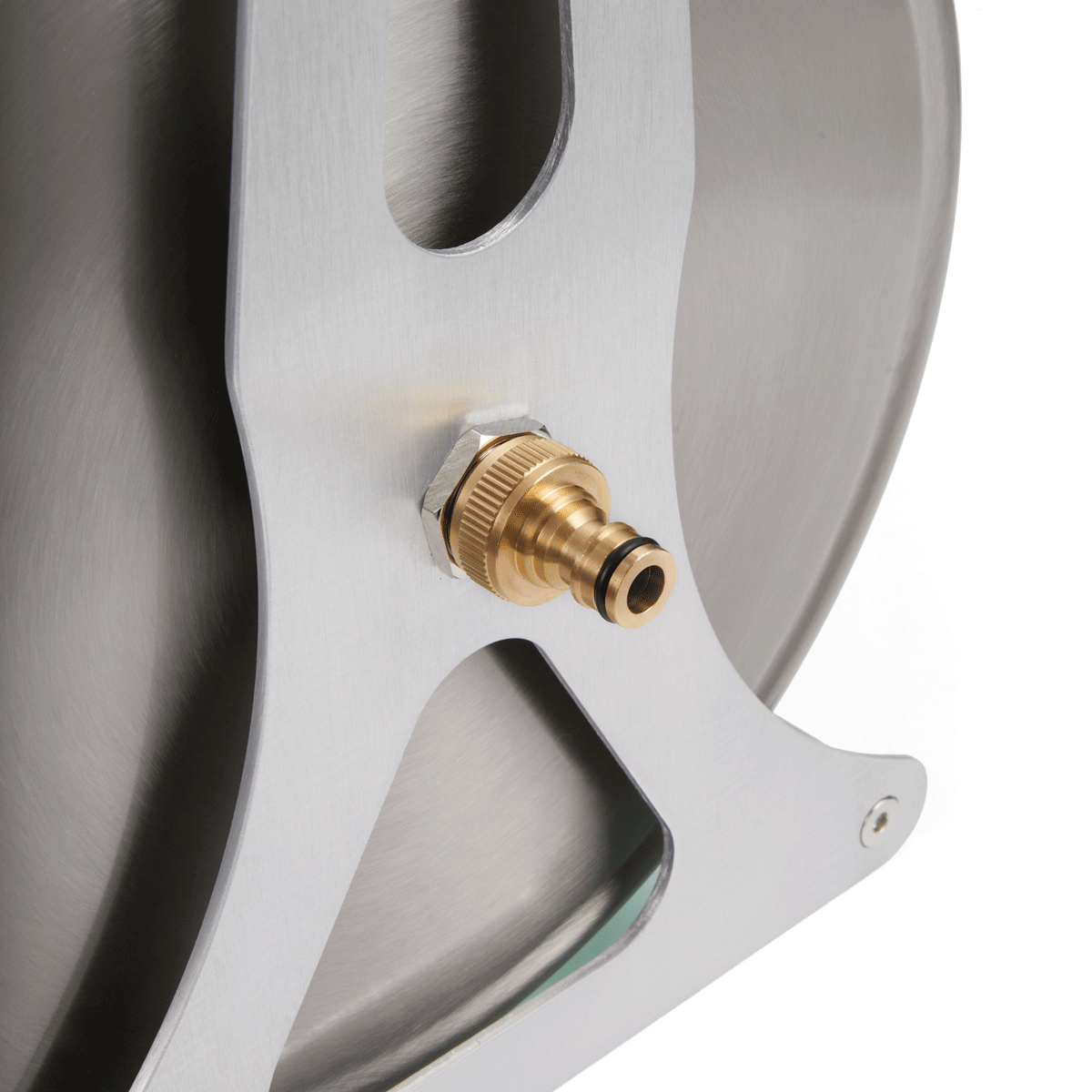

RADIAL HOSE REEL is a stainless steel hose reel with either wall or floor mounts (you can remove the reel easily if you need portability) with a capacity of over 300FT (100M) of HOSE/TUBE.

To help understand the meaning of HOSE vs TUBE, a HOSE has multiple layers in the wall (usually two layers of a plastic sandwiching a braid for additional pressure thresholds) whereas a TUBE has a single layer wall of plastic (in the case of HI-FLOW TUBE, it is PU).

We redesigned all our RADIAL brushes to match the desired flowrate for maximum performance.  This is 1/2GPM (2LPM) for RADIAL BRUSH, and ROCKER BRUSHES we call this 'HIGH FLOW' and either HIGH FLOW, or LOW FLOW (1/3GPM or 1.5LPM) for RADIAL LITE and RADIAL ULTRA-LITE BRUSHES.

We redesigned FLOW RED+ to maximise the flowrate possible from an RO-DI SYSTEM with both membrane technology, and the internal plumbing design.  At 100PSI, FLOW RED+ can deliver 1GPM (3.8LPM) with 70ºF (20ºC) water in. Between the filter, and the brush, the hose has 'resistance' that has a cumulative effect to reduce the flowrate - this is why it is so important to have a high flowrate RO-DI system.

Between the FILTER and the BRUSH, we have two challenges.

GRAVITY (5PSI head per 10FT (3.5M) which we cannot change.  The effect of cleaning at 40FT is a 'back-pressure' value of 20PSI.

HOSE WALL RESISTANCE : The thinner the INTERNAL DIAMETER (ID) of a hose, the greater the resistance in the hose. The longer the hose, the greater the cumulative effect of the resistance.

With this in mind, REACH-iT have developed a balanced water delivery hose for long run applications. The outer diameter is 5/8" (16MM), and we can calculate the ideal ID of hose and tube to deliver the target 1/2GPM at the RADIAL BRUSH.

This is the science behind RADIAL HOSE - its science - and, to make it better, it is UV resistant, non-kink, and high-vis.

If you have a reel, or you do not want a reel, you can invest in RADIAL HOSE only. If you have a hose you like, but not a reel, you can invest in RADIAL REEL only.  If you are looking to extend any of your REACH-iT packs (all with 75FT (25M) HI-FLO TUBE) to 300FT (100M) reach, then we have a super discount on the REEL, HOSE, and another 75FT HI-FLO TUBE to give you a total reach of 300FT - and it all fits easily on the RADIAL REEL.
