RADIAL BRUSHES Spare Parts
SKU 2-001A-00207
ALTITUDE members save up to 30%
Sign in to see your price. See the tiers
1. BRUSH TYPE
DETAILS
DETAILS
Shipping U.S. and worldwide, rates at checkout.
DETAILS
Please read the details and descriptions below to help you
BLOCKS:

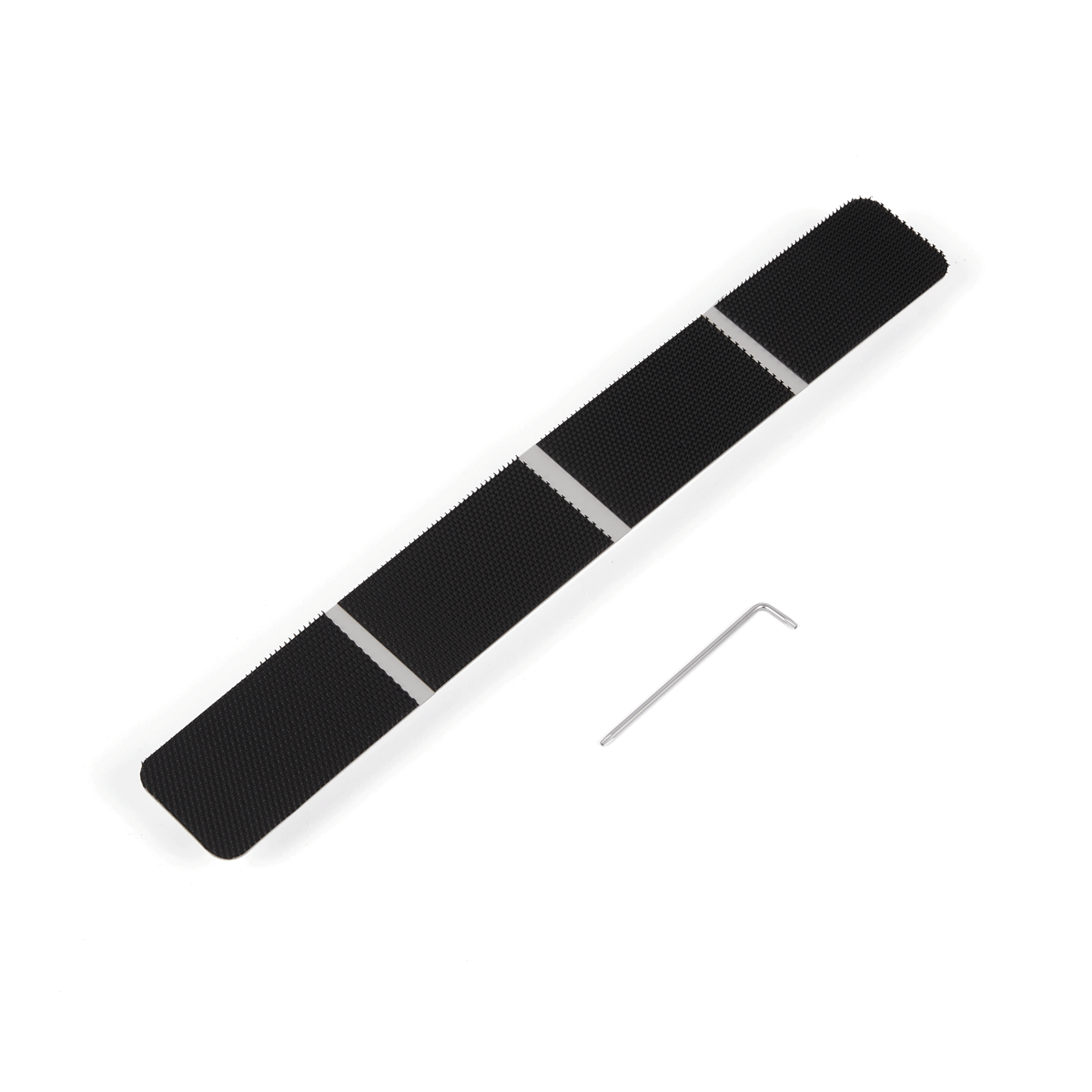

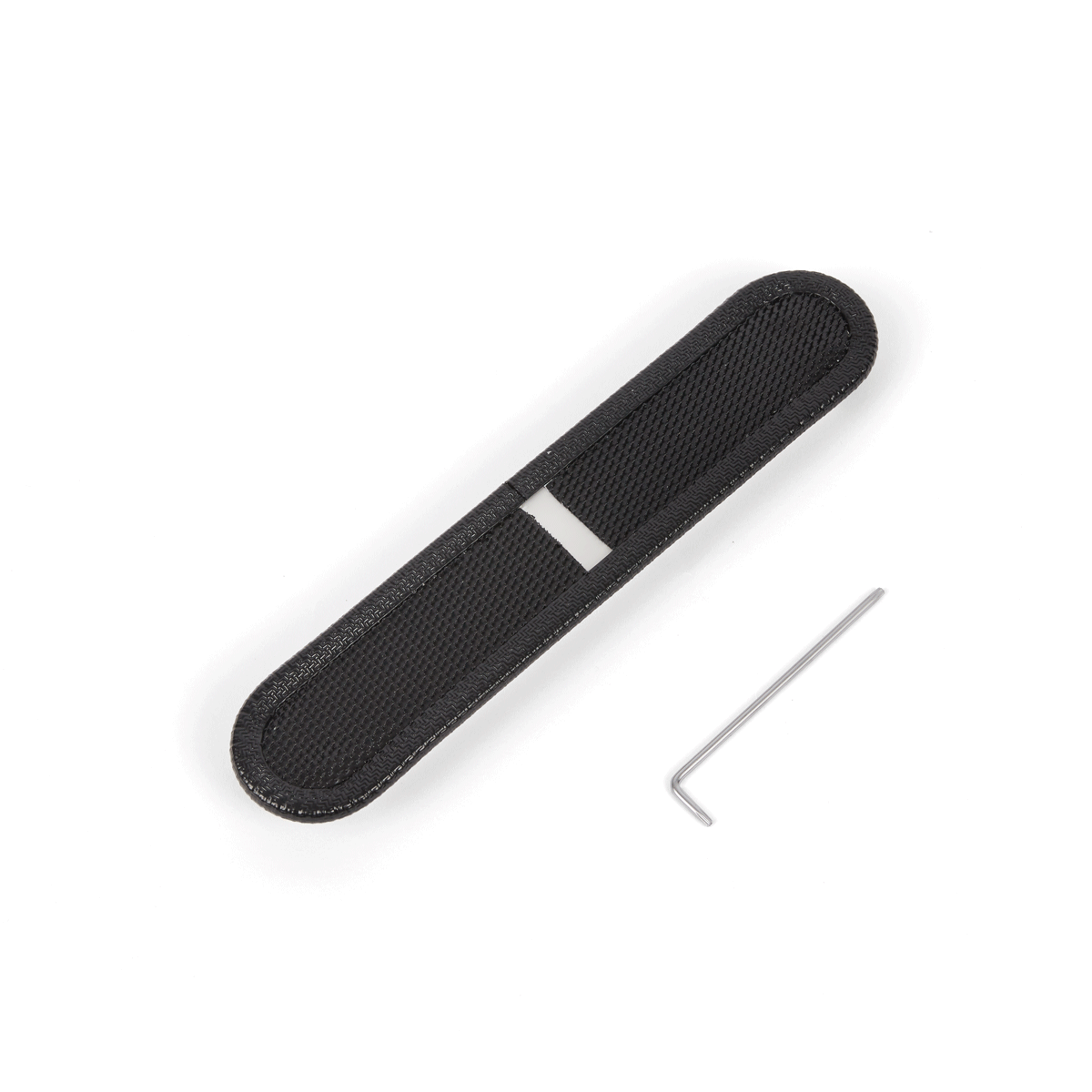

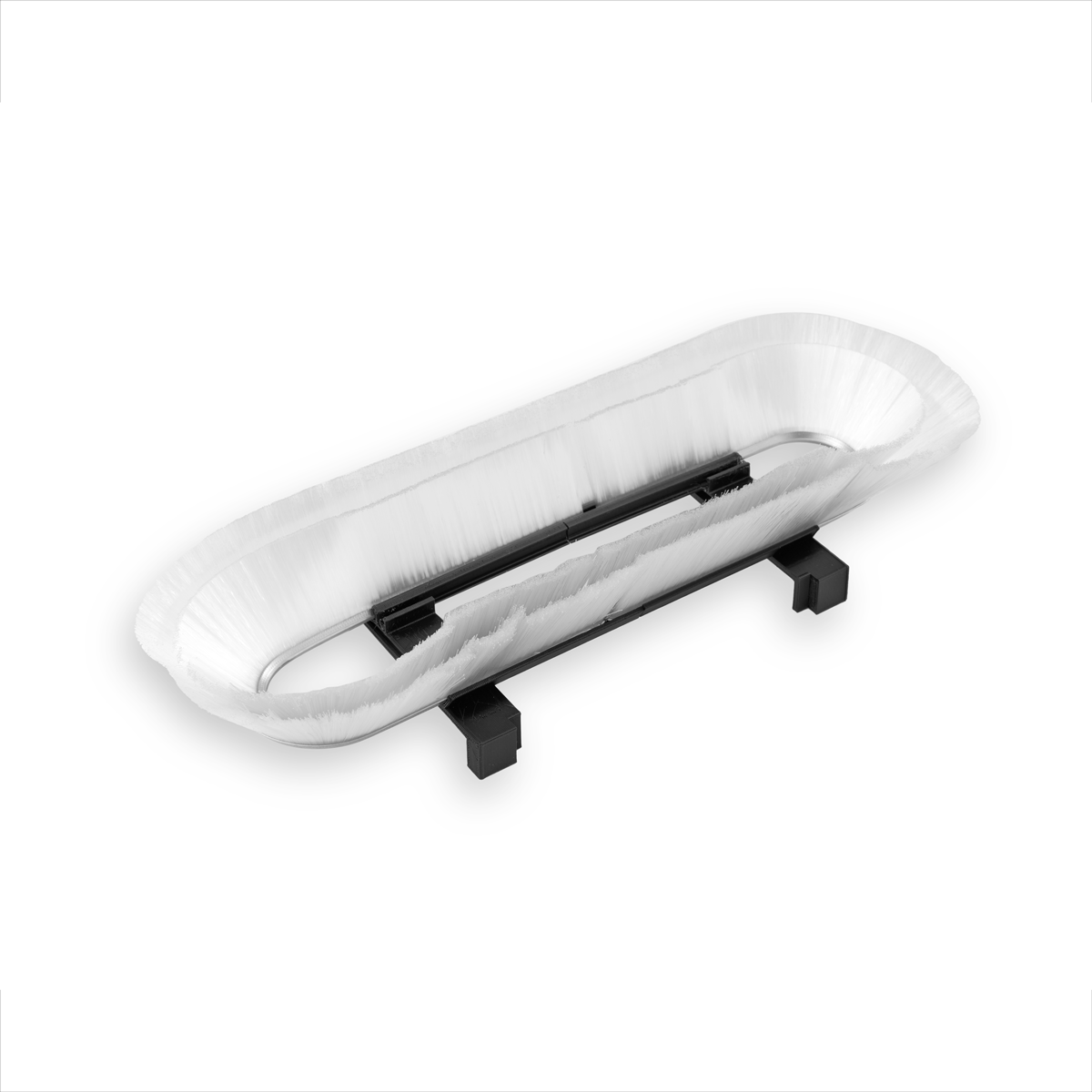

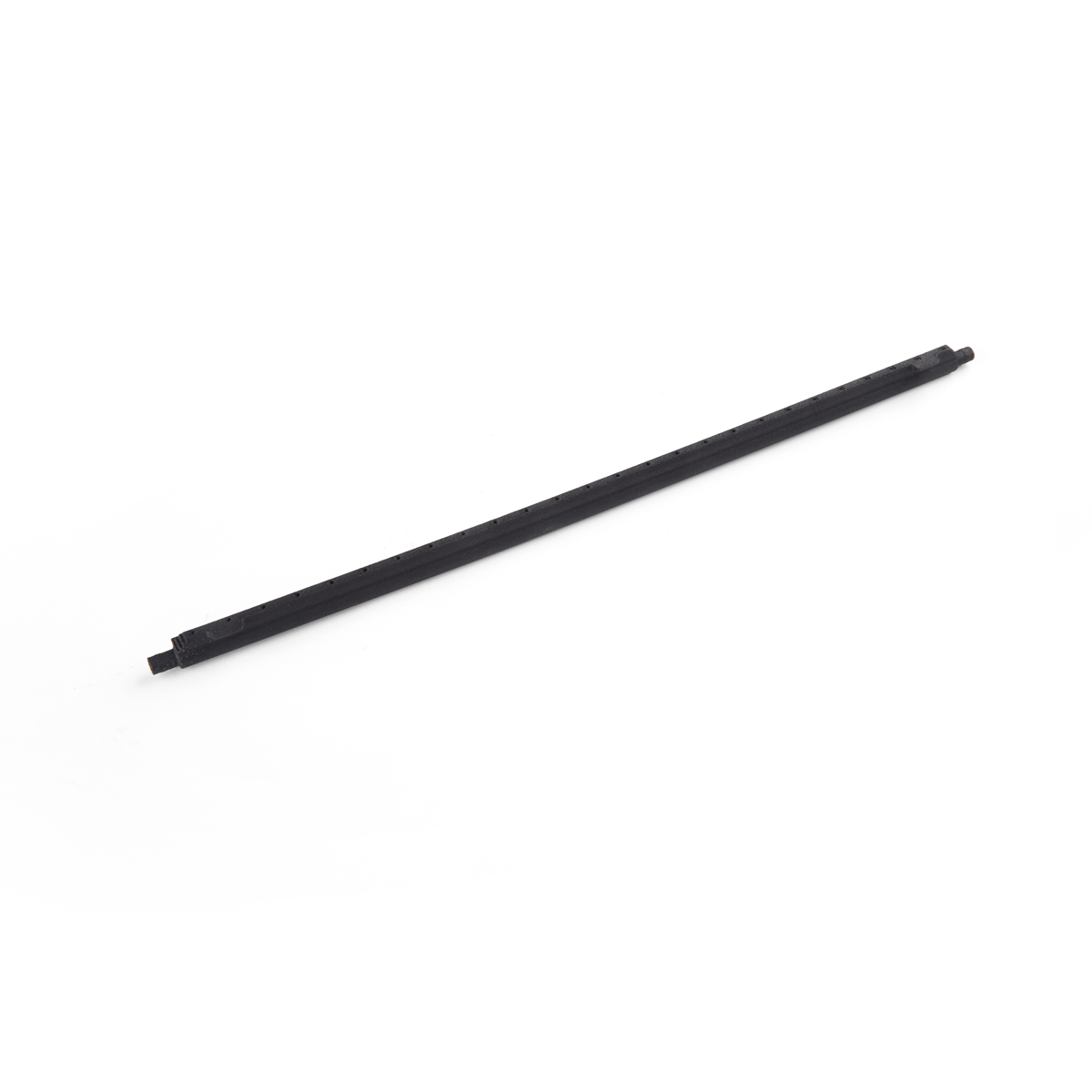

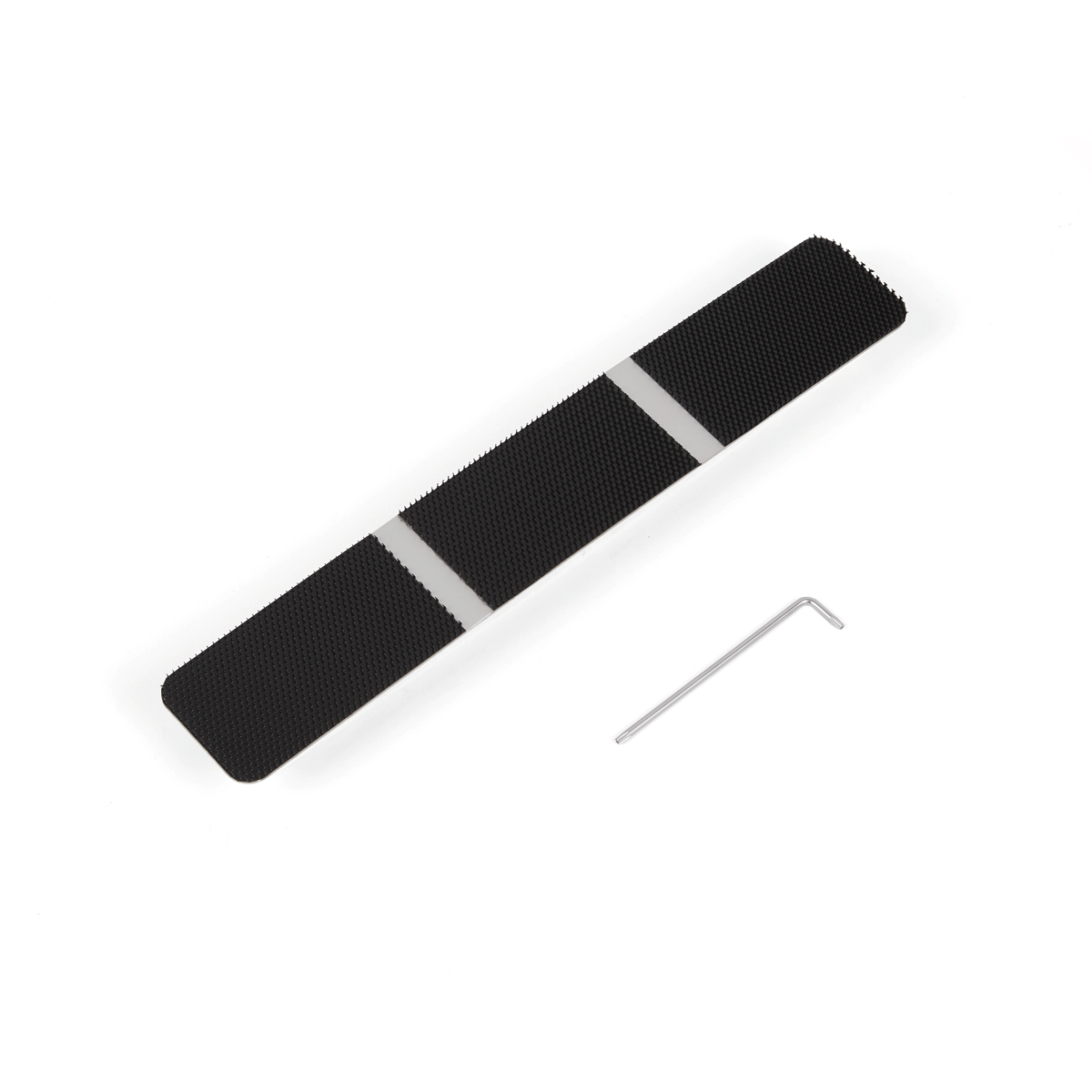

ROCKERS: the Rocker Mechanism is a complete 'slide and replace' kit. Remove the tube around one endcap (be careful to pull the tube off the rinse bar IN LINE - not at an angle - to the rinse bar to prevent breaking the rinse bar), remove one endcap, remove the bristles from one end, slide out the damaged ROCKER BLOCK. Re-assemble in reverse, being aware of the need to push the tube straight onto the rinse bar.

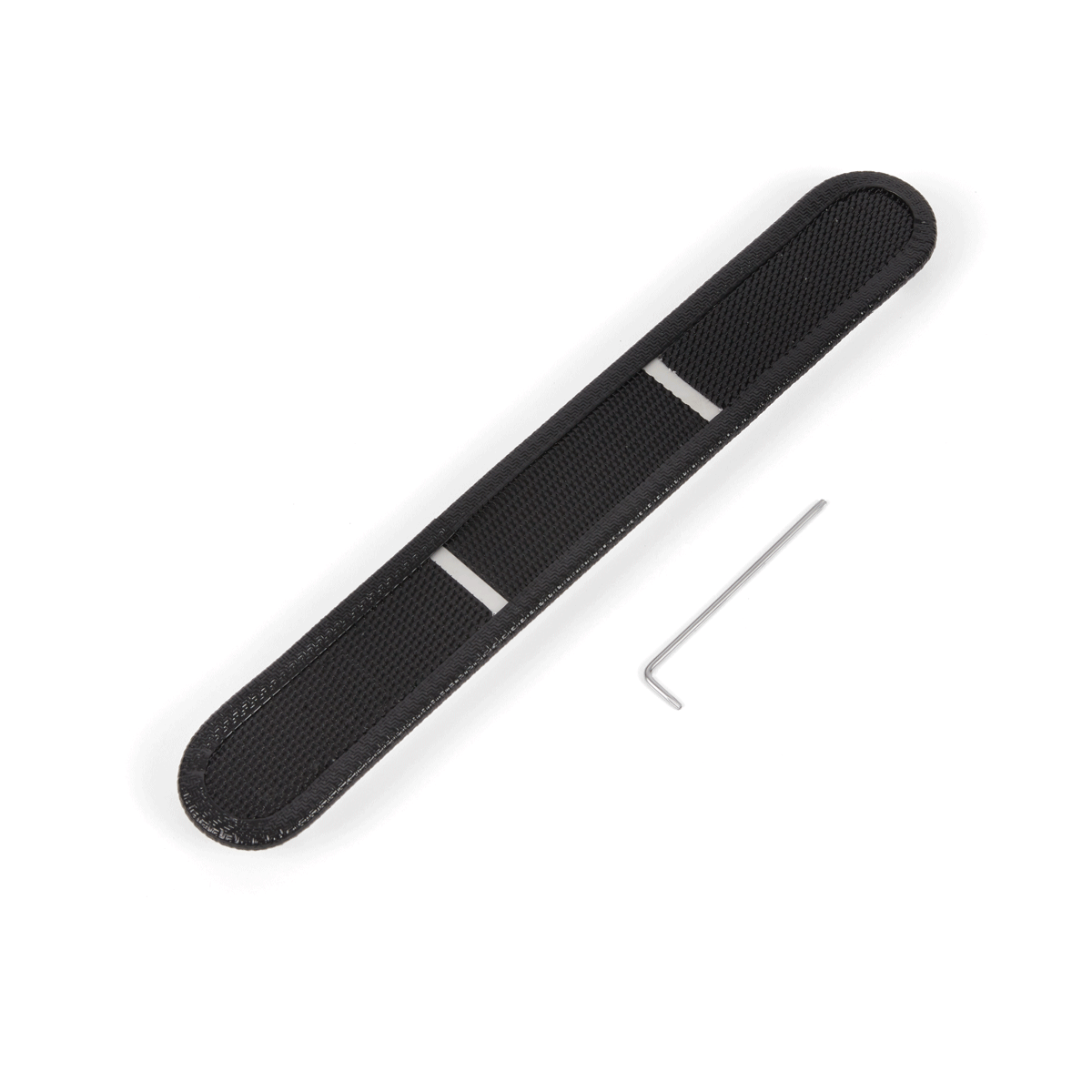

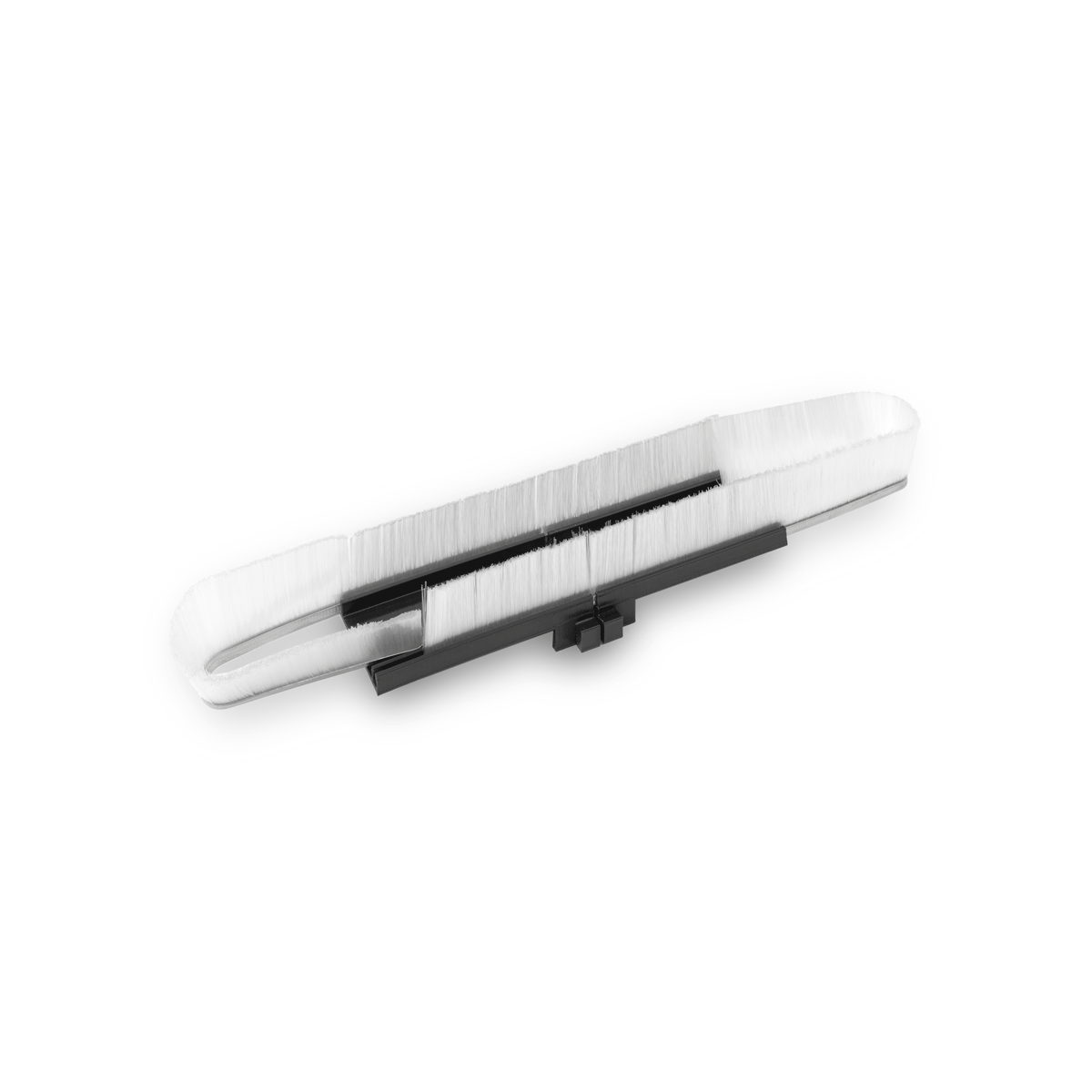

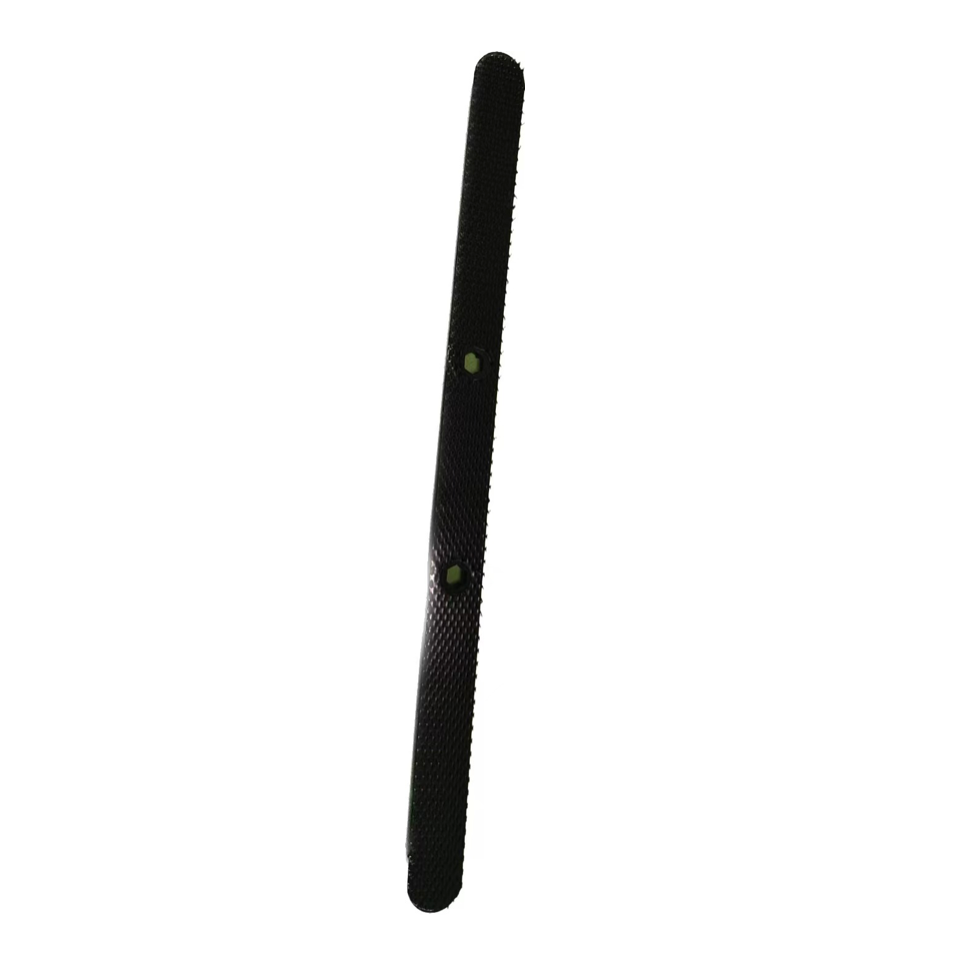

ULTRA-LITE:
the Velcro Block is a complete 'slide and replace' kit. Remove one endcap, remove the bristles from one end, slide out the damaged BLOCK. Re-assemble in reverse.

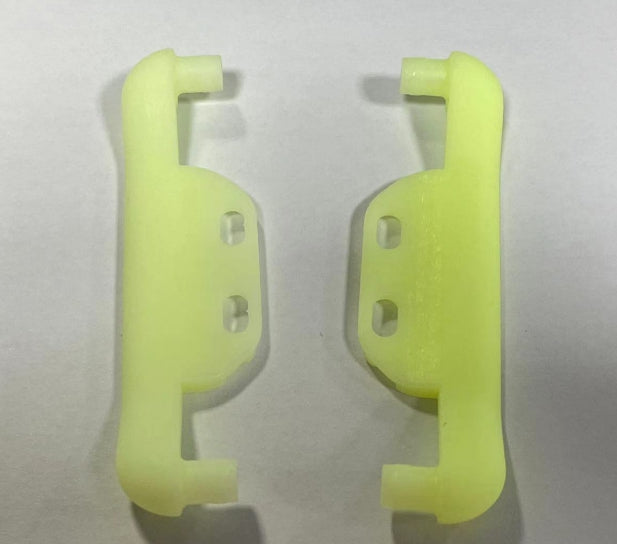

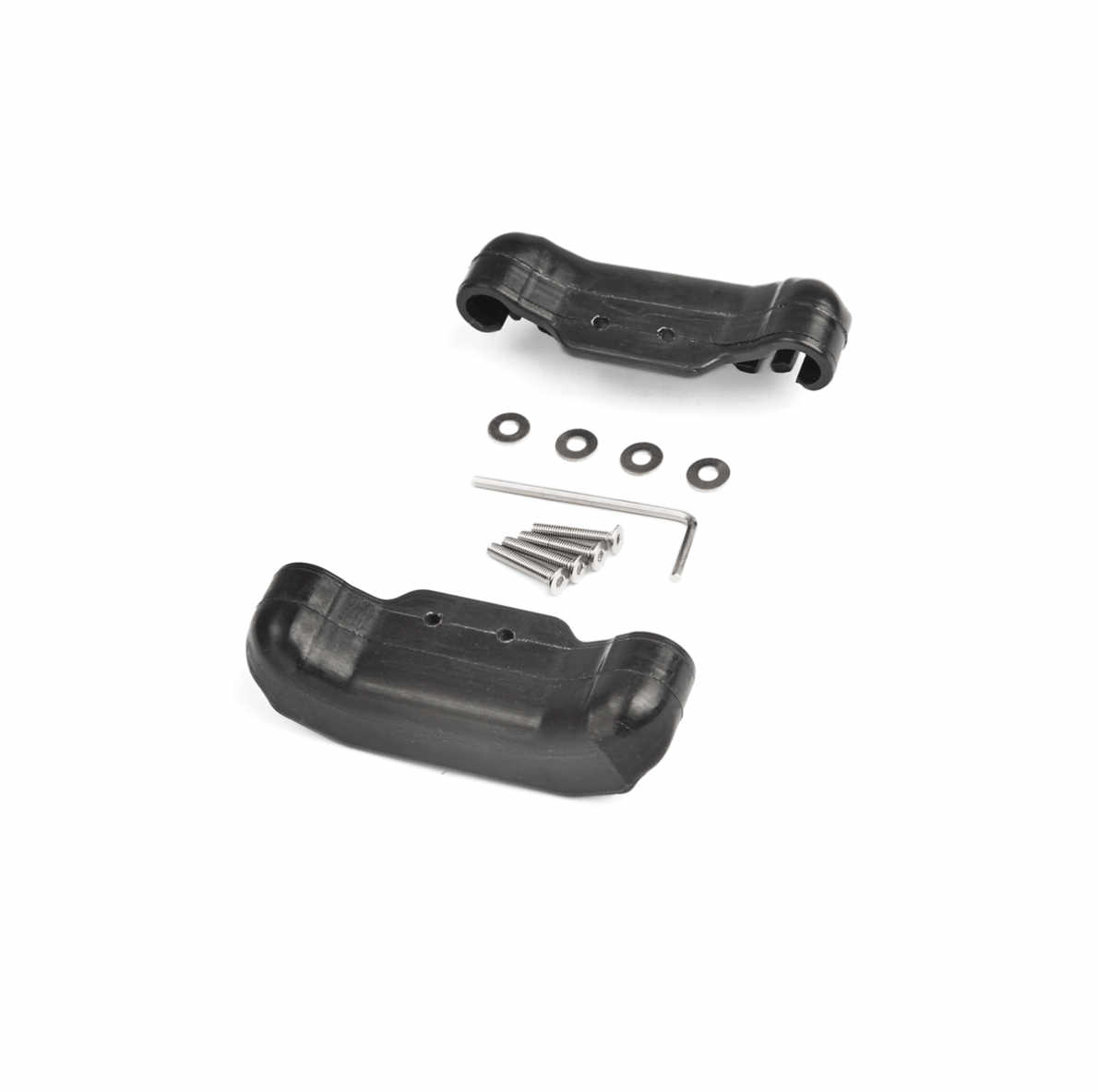

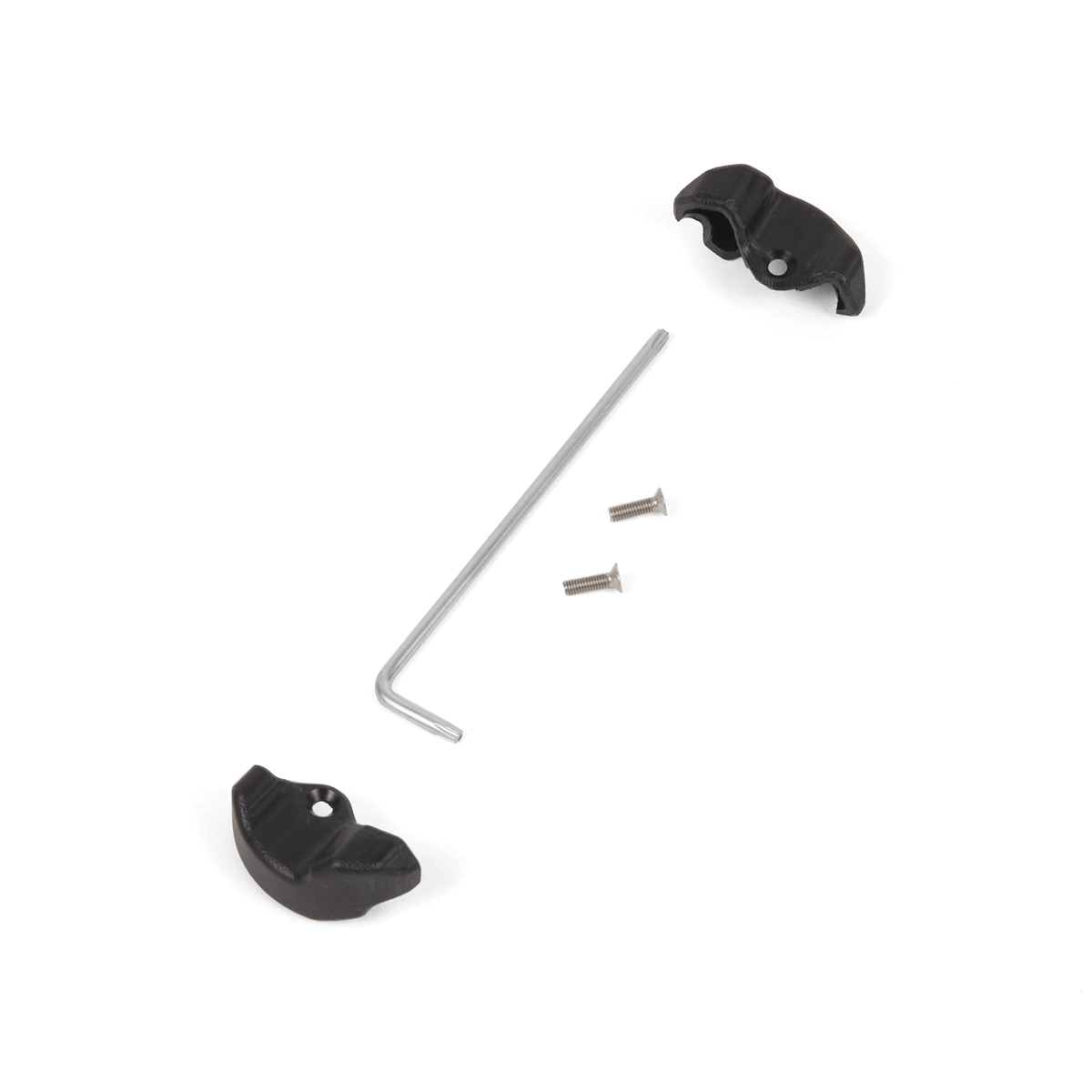

ENDCAPS:

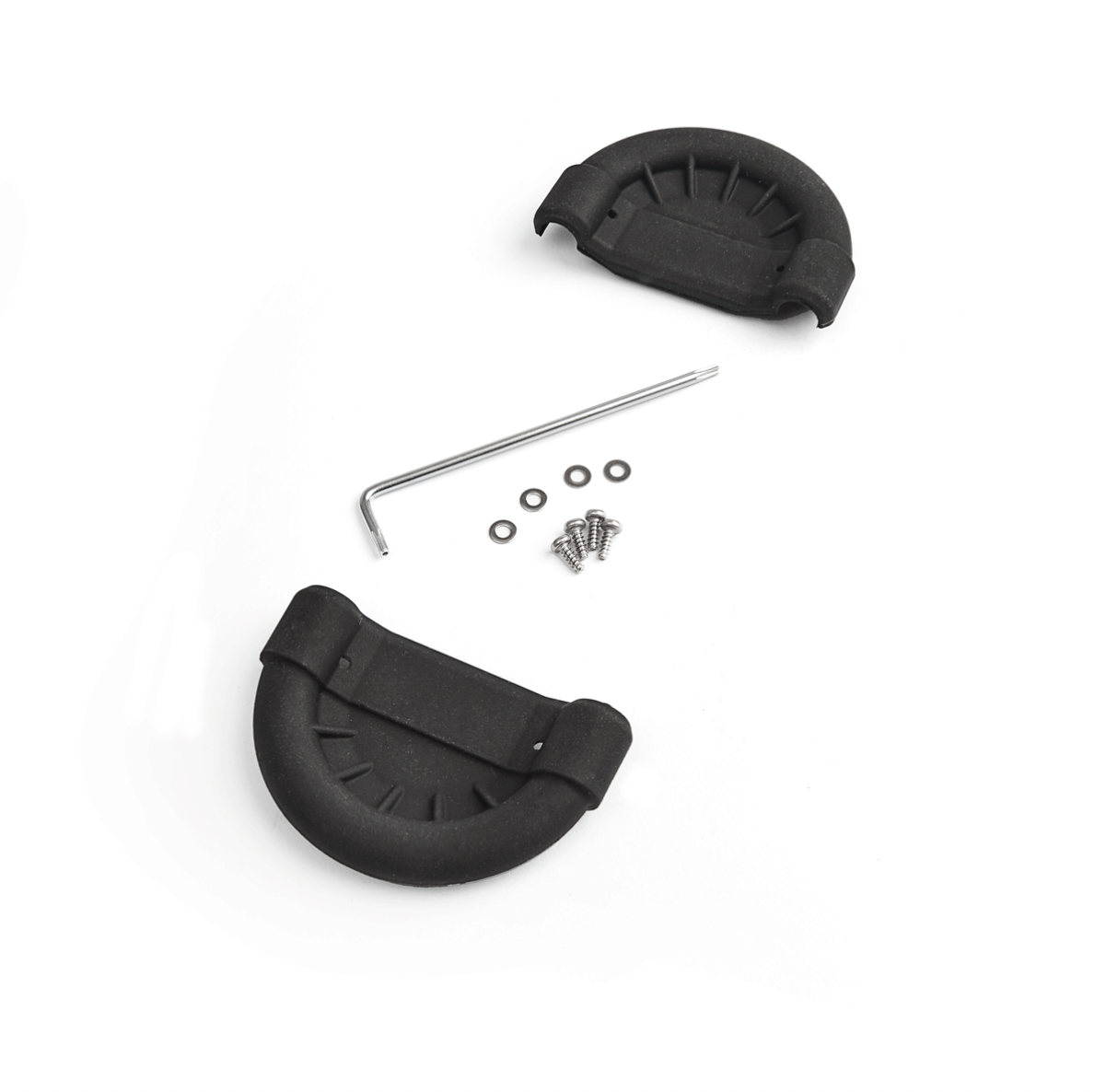

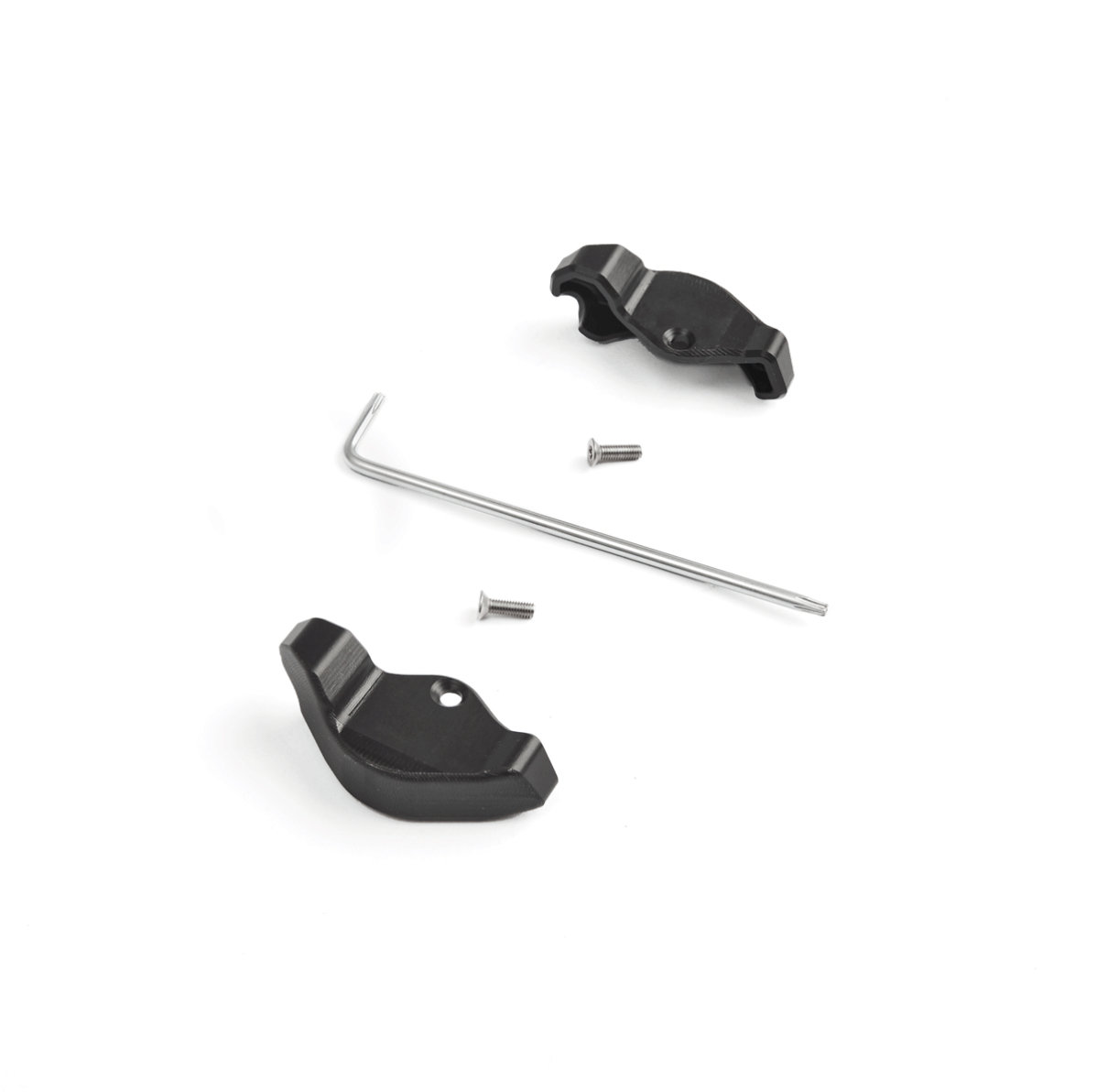

Replacement endcaps for RADIAL BRUSH and ROCKER BRUSH are now solid 'one-part' TPR material.
When replacing end-caps, be careful not to over-tighten the screws for the bumpers.

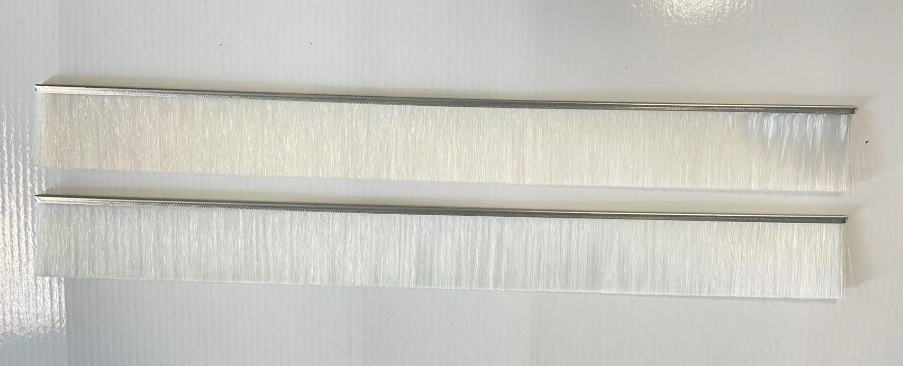

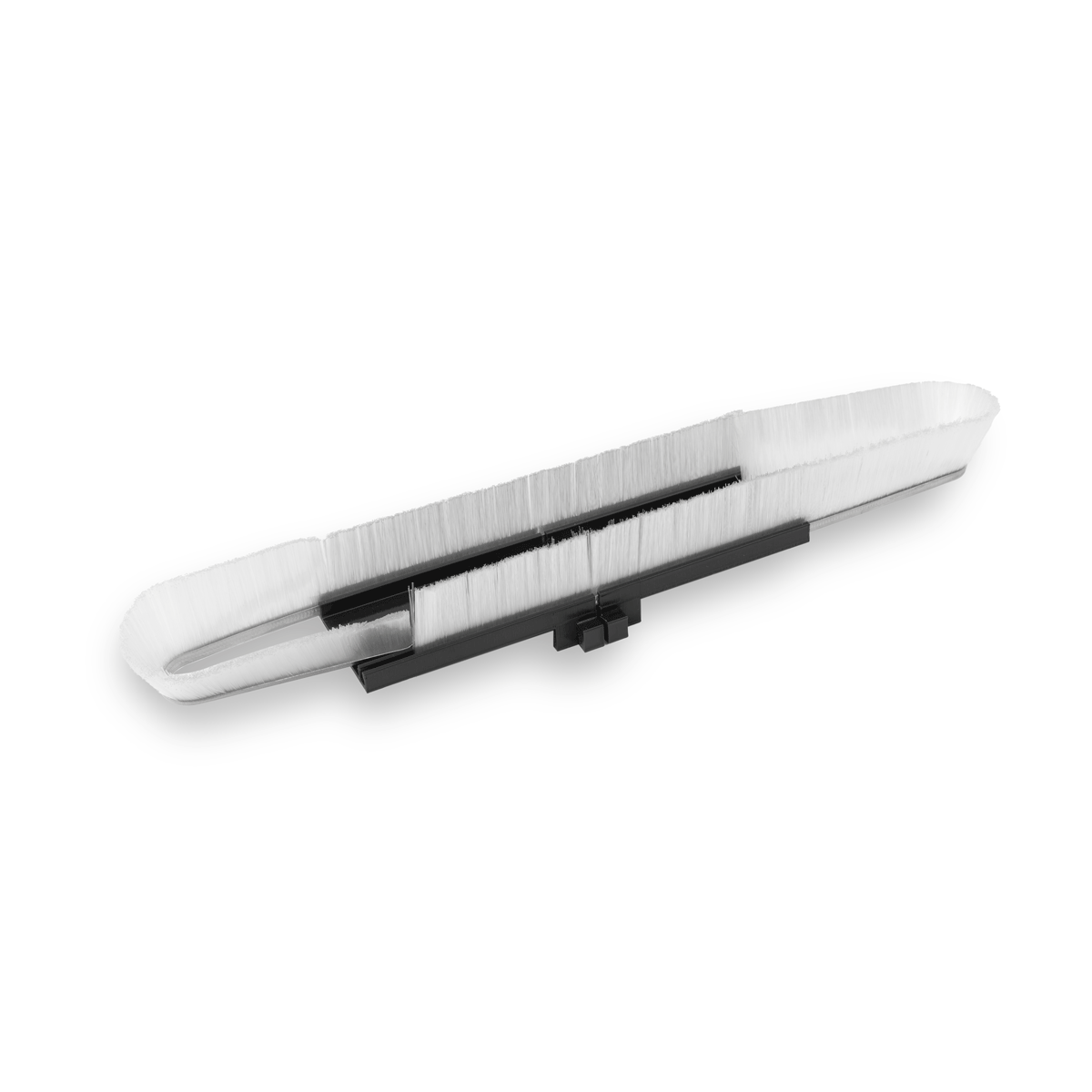

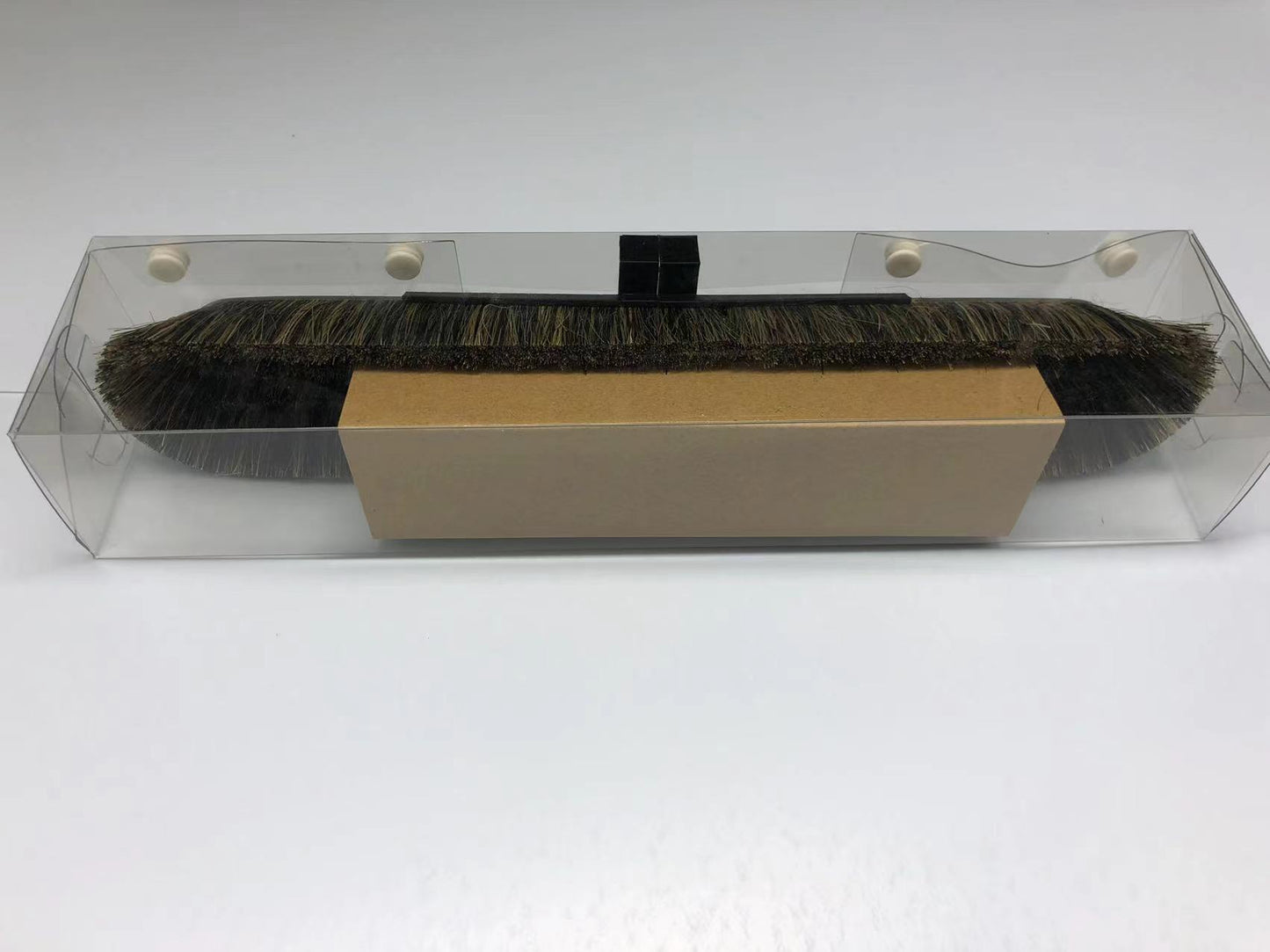

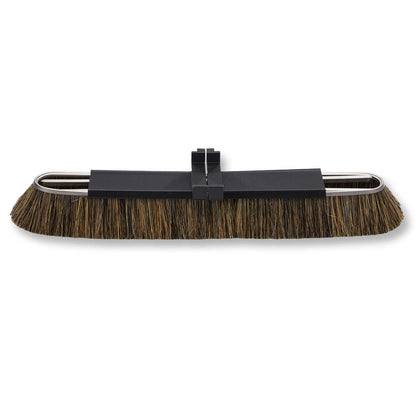

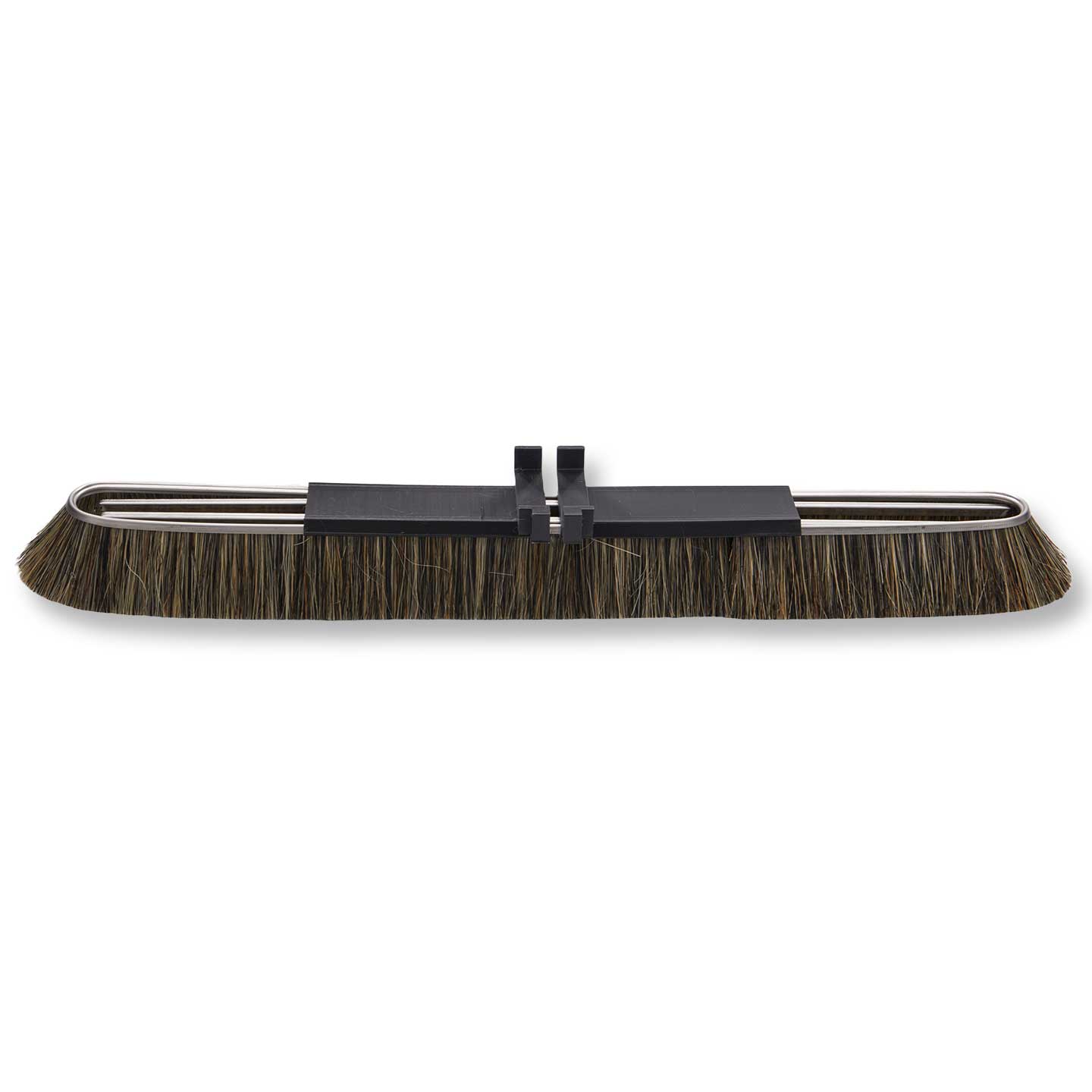

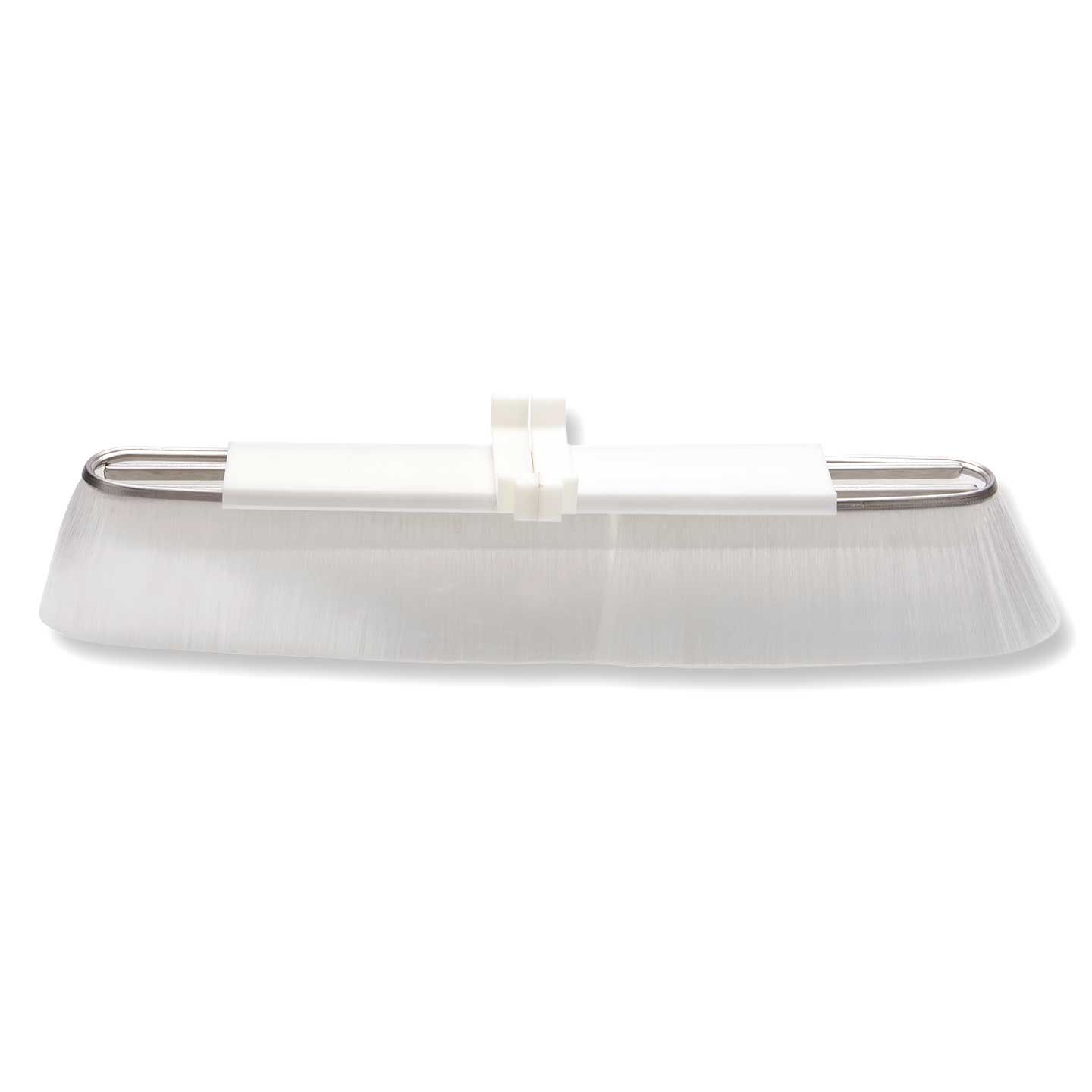

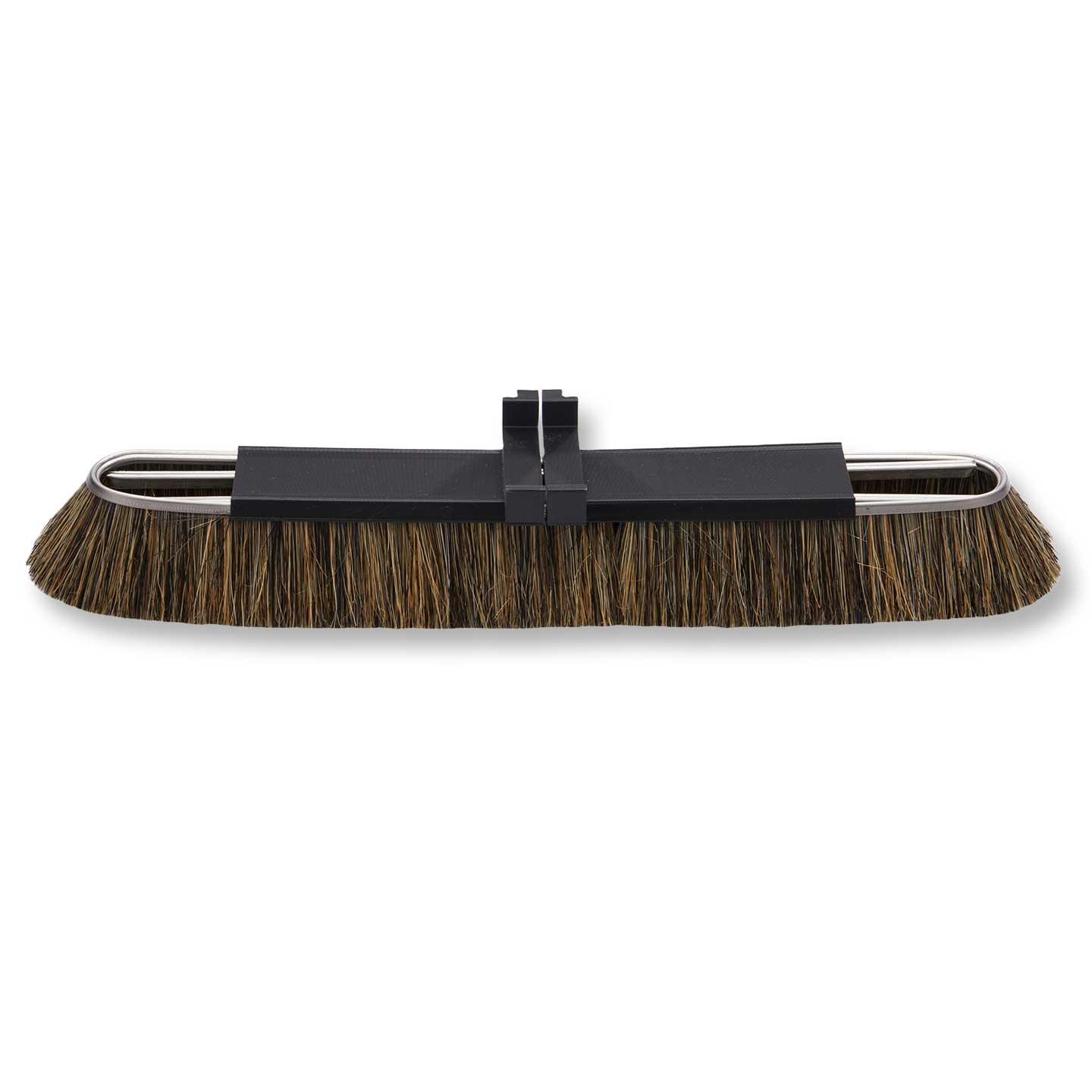

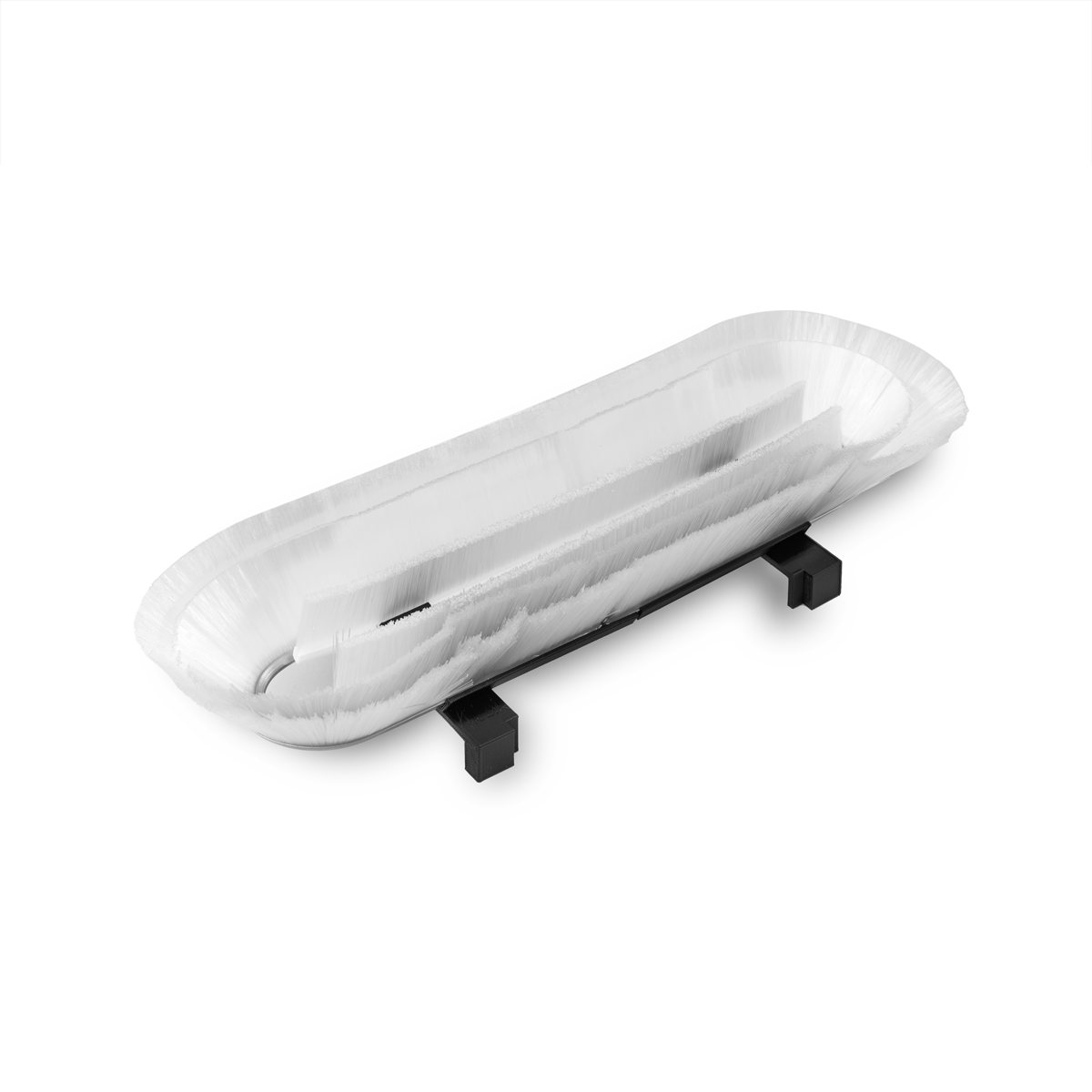

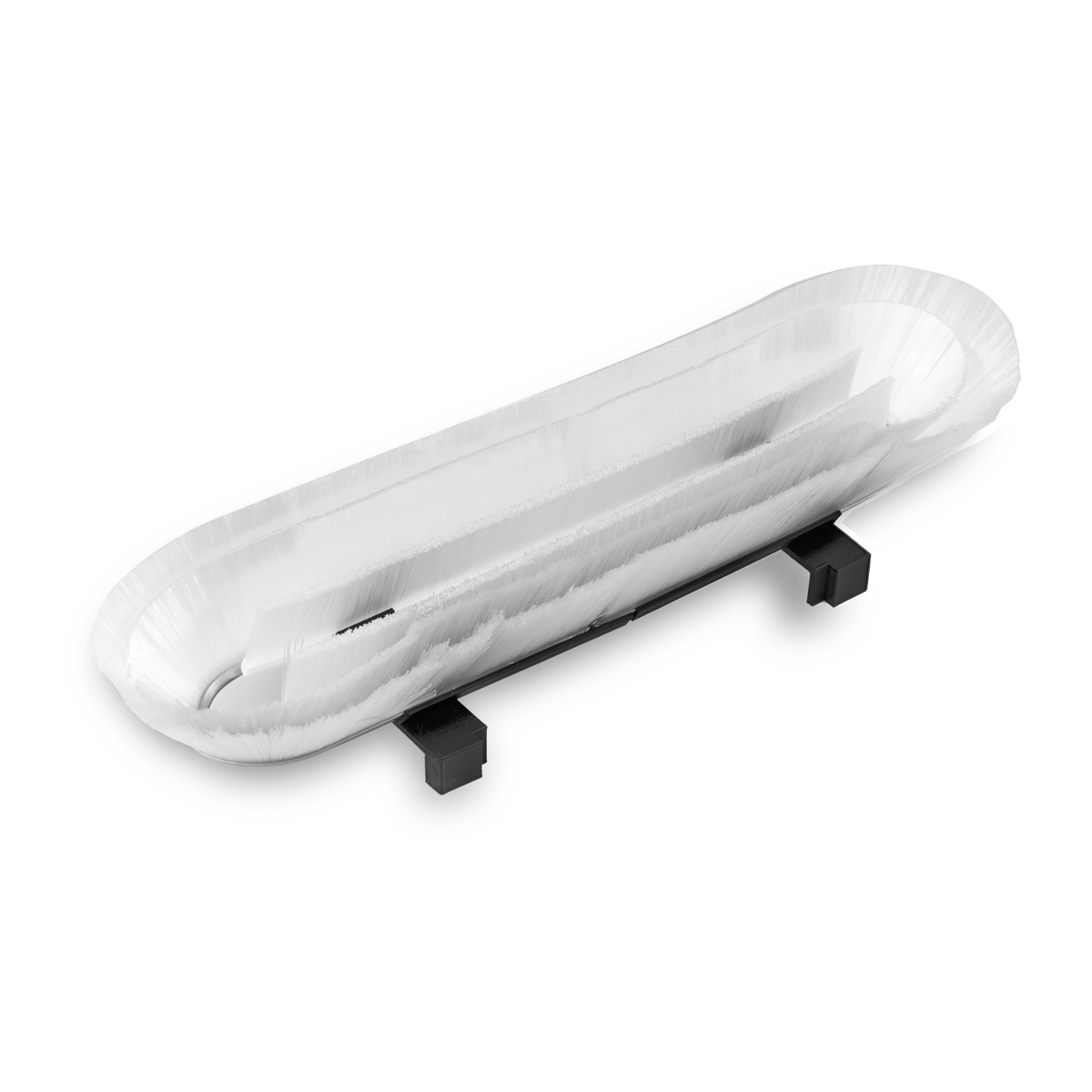

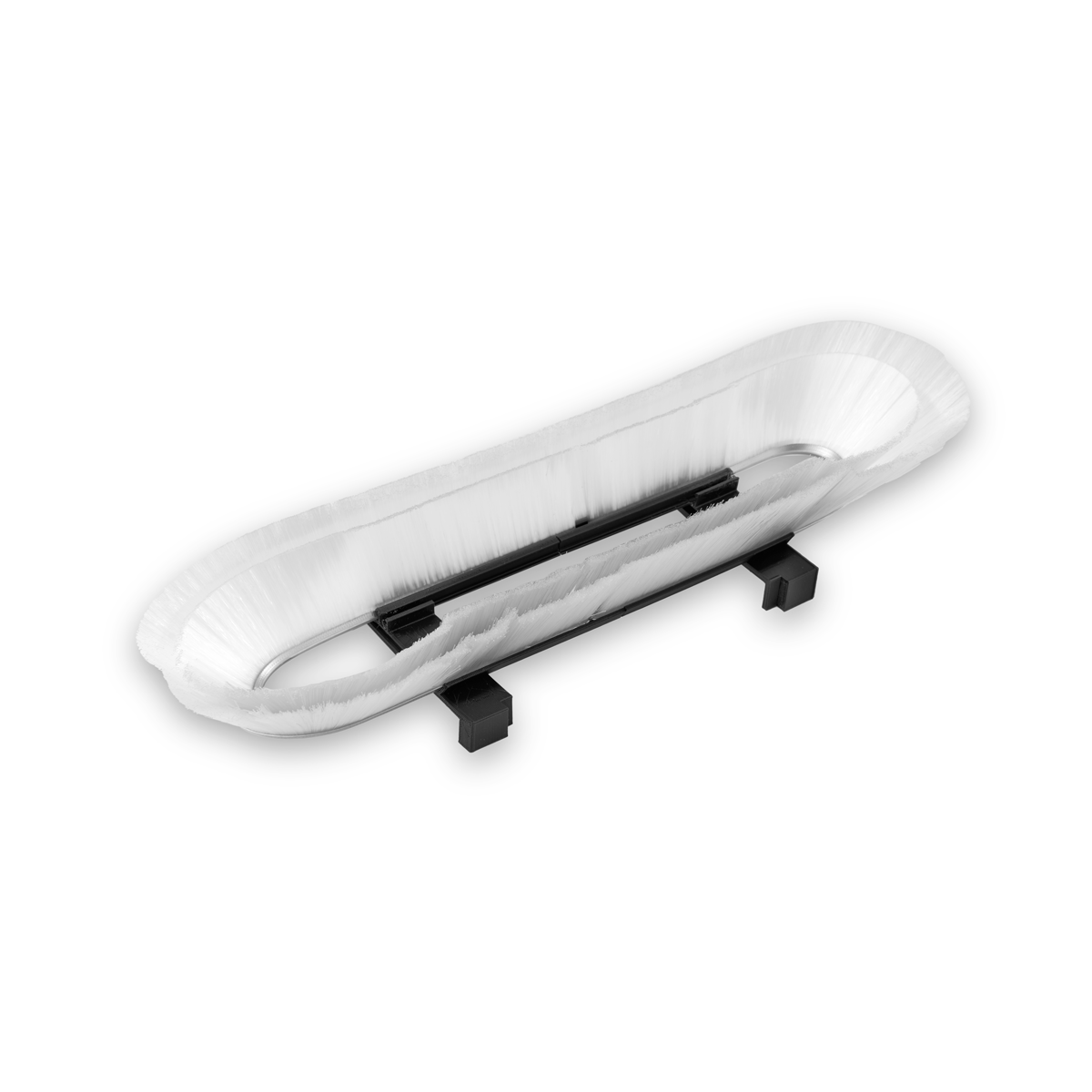

BRISTLES:
If you are replacing BRISTLES, please note that you choose this option at your own risk. There is no warranty or guarantee as it is possible for these bristles to be distorted and difficult to load into the brush. No returns, no refunds. Caveat Emptor.
ALL Bristle Packs are a full replacement set. Outer and Inner are not sold separately.
IN-LINE FILTERS:

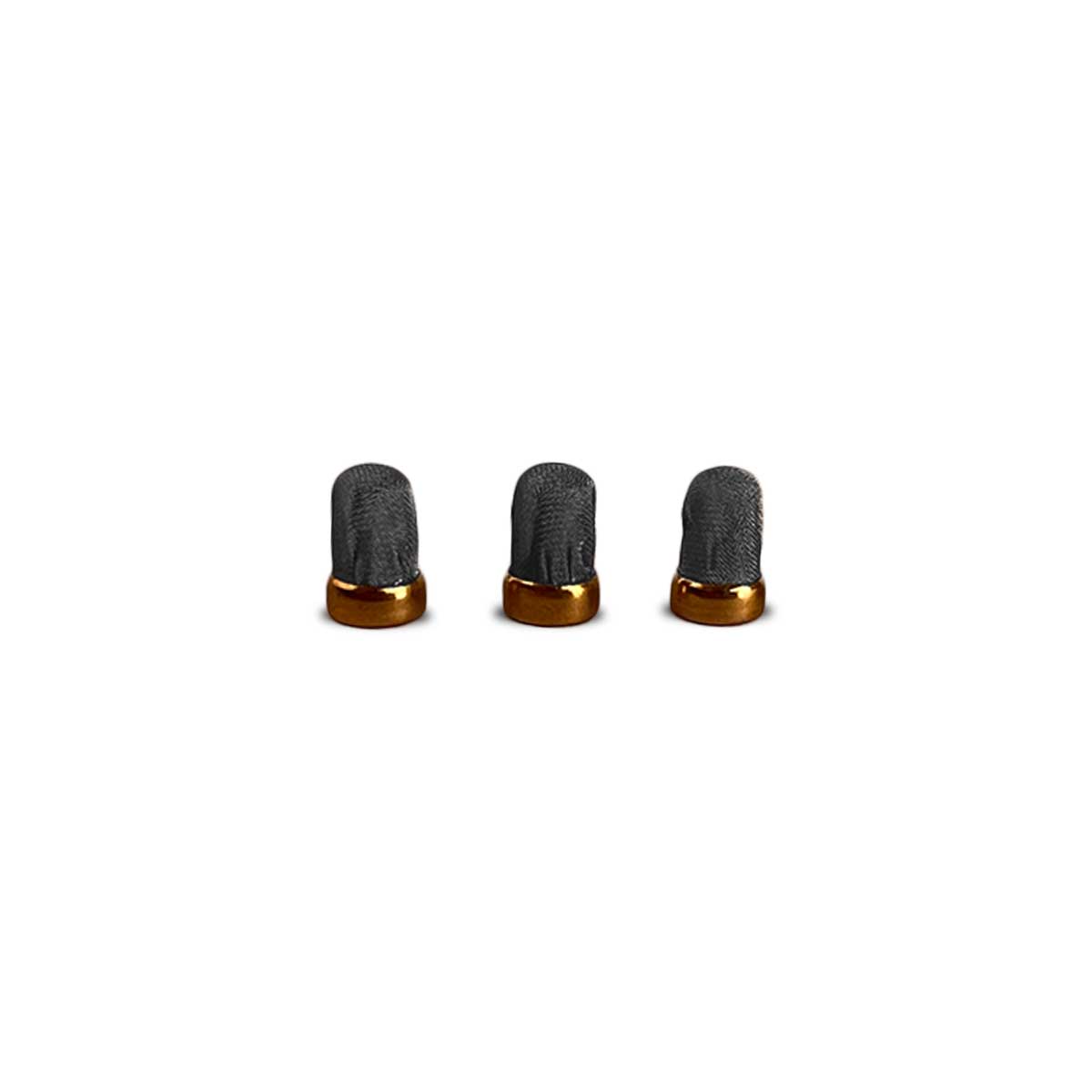

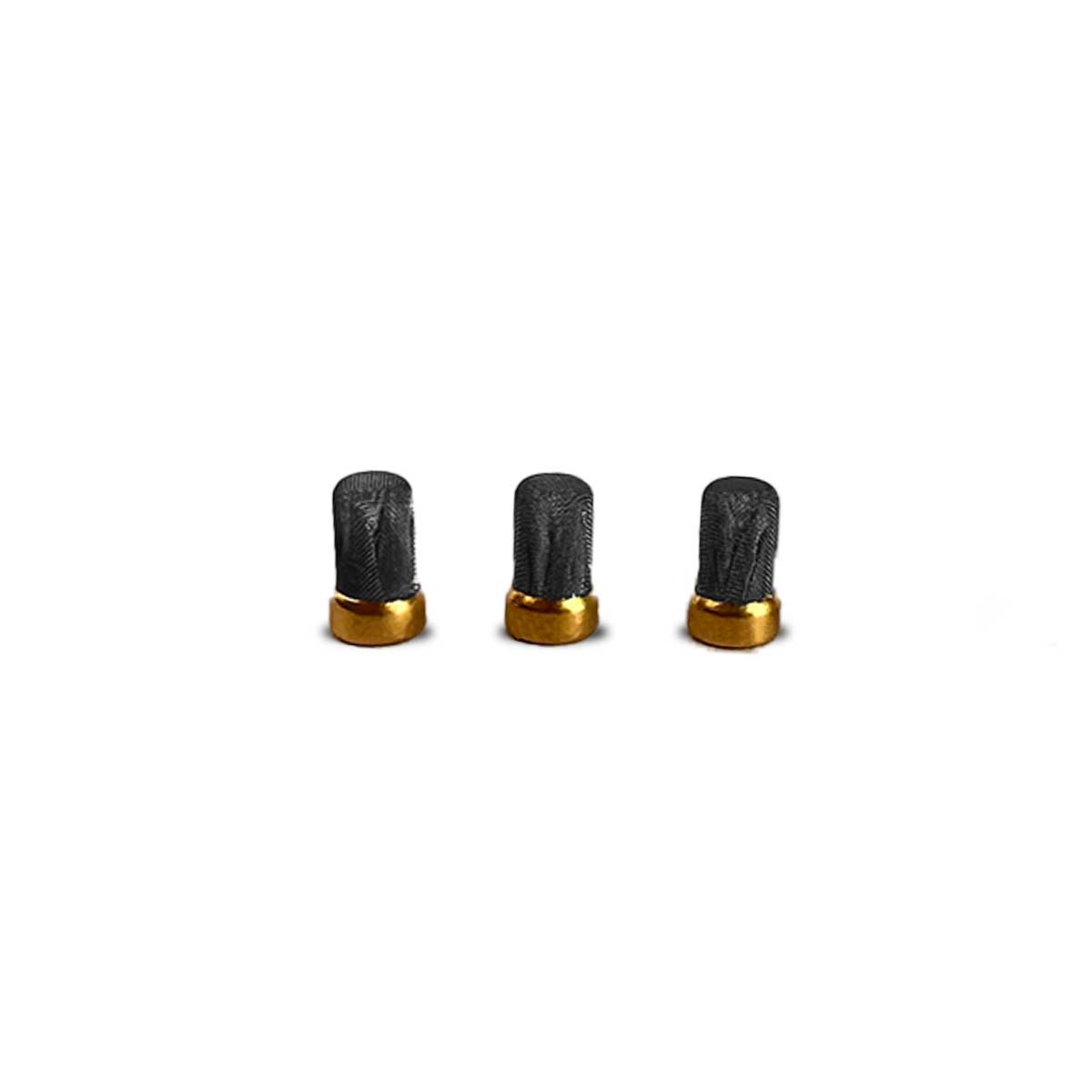

In-Line Filters for LITE, ULTRA-LITE, and BEAST LITE are the small insert that fits the brass T going into the brush, and once inserted, the 8:8 or 8:10 pushfit slides over the top. We include a spare 8:10 pushfit in case you get a filter stuck in the pushfit.

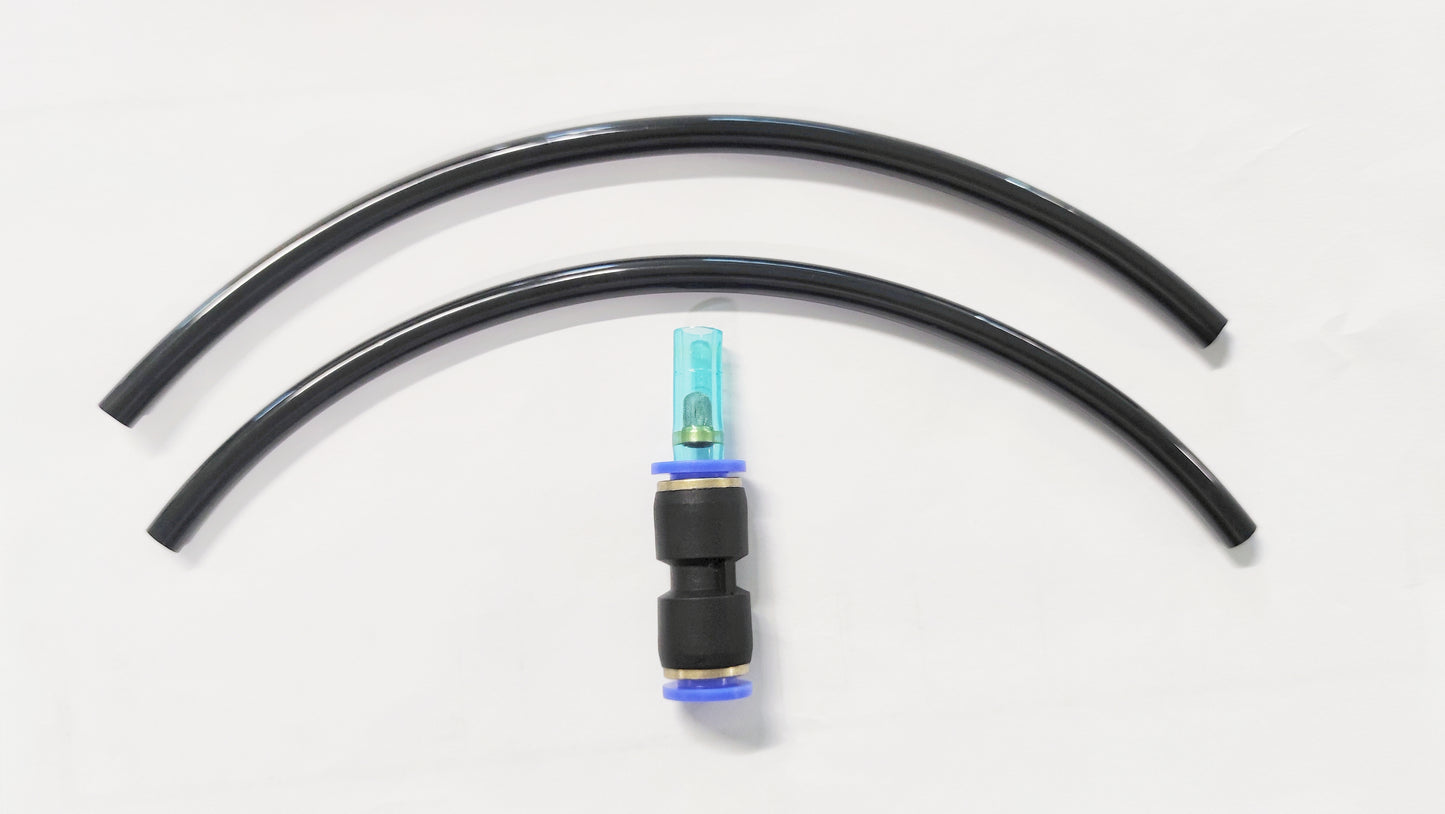

IN-LINE FILTERS for RADIAL, ROCKER, DEEP-FRAME, SOLAR ROCKER was originally small filters inserted in the black tube on each side of the T Pushfit where the water comes in. REPLACEMENT IN-LINE Filters are now a larger filter external to the brush. The kit is replacement black tubes to go around the brush (Be Careful To Only Push and Pull onto the Rinse Bar in a Straight Direction), a short piece of HI-FLO TUBE with the Filter inside (it is visible now), and a 10:10 pushfit to join back to the HI-FLO TUBE.
VIDEOS :
€27,15
RADIAL BRUSH / ENDCAP SET
FAQ
What is the REACH-iT RADIAL HANDLE?
The handle fitted to every current RADIAL brush, including the ROCKER, LITE, ULTRA-LITE, DEEP-FRAME and FRENCH PANES. Add one aluminum pole-to-handle stem adaptor for your pole brand and you can switch between all your RADIAL tools, and the G-FORCE and Z-FORCE, in seconds. Unclipped, it turns the brush into a hand tool for ground-floor glass. One RADIAL HANDLE part fits every brush and is sold on the RADIAL BRUSHES Spare Parts product page.
How do I fit a REACH-iT brush to an Unger n-Lite or Unger Euro-thread pole?
For the top clamp of an Unger n-Lite pole, use the aluminum Unger straight stem adaptor: it connects to the brush's RADIAL HANDLE and keeps the PIVOT working. For reach over sills or into deep-set windows, choose the 6", 12" or 18" / 15, 30.5 or 45.7 cm REACH MASTER (60° angle) instead. For a Euro-thread pole tip, a EURO FEMALE for PIVOT is sold on the RADIAL BRUSHES Spare Parts product page.

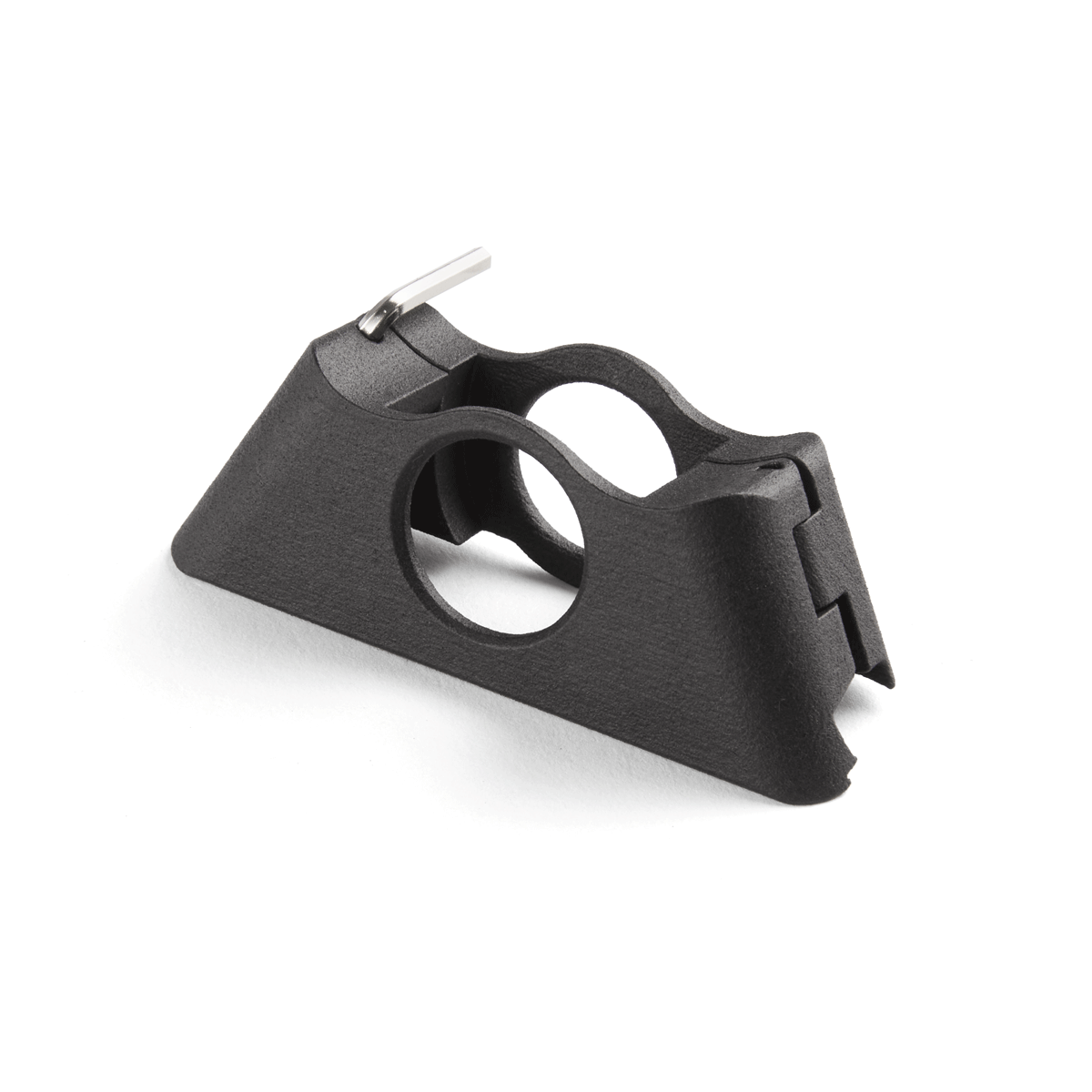

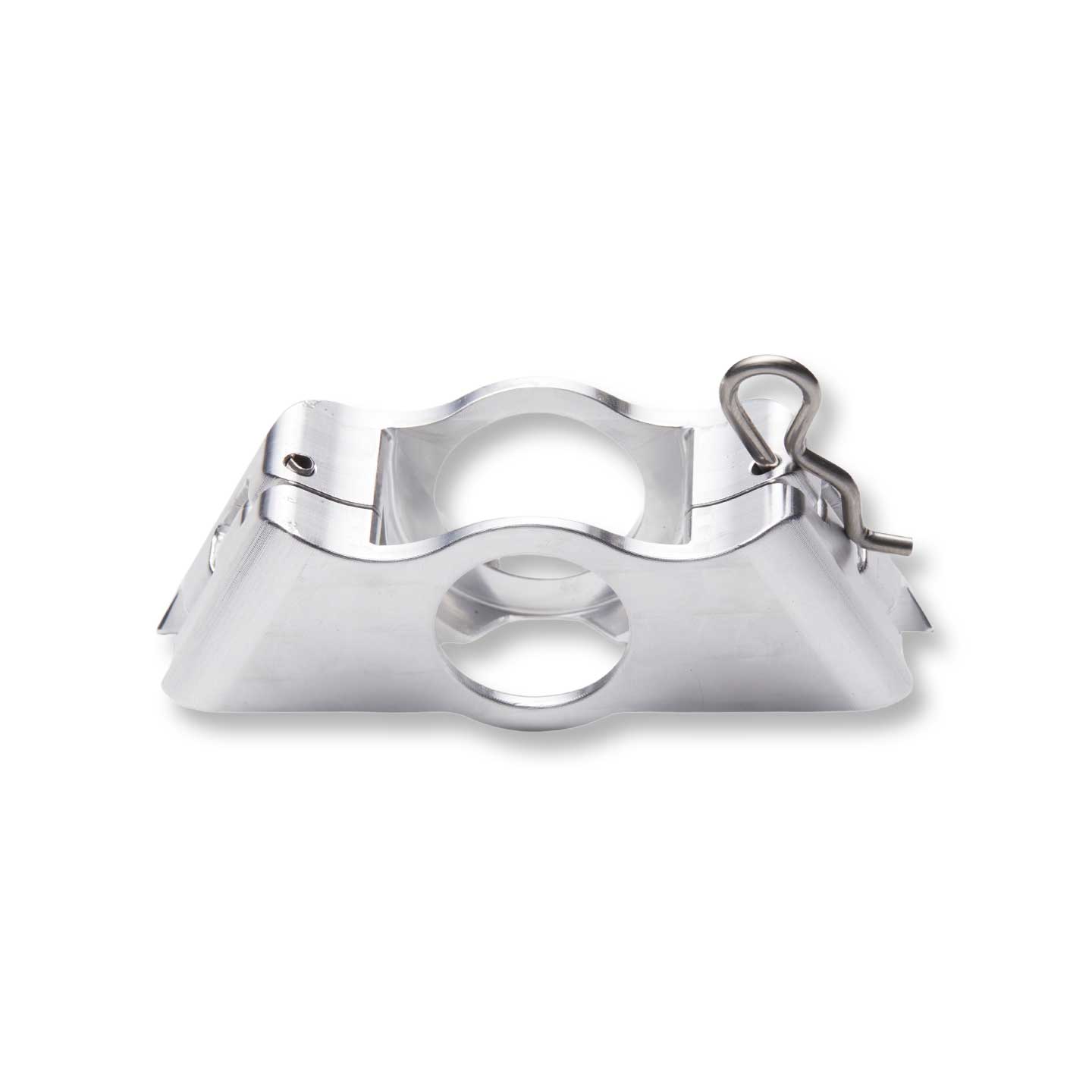

What are the PIVOT and PIVOT LOCK on REACH-iT brushes?

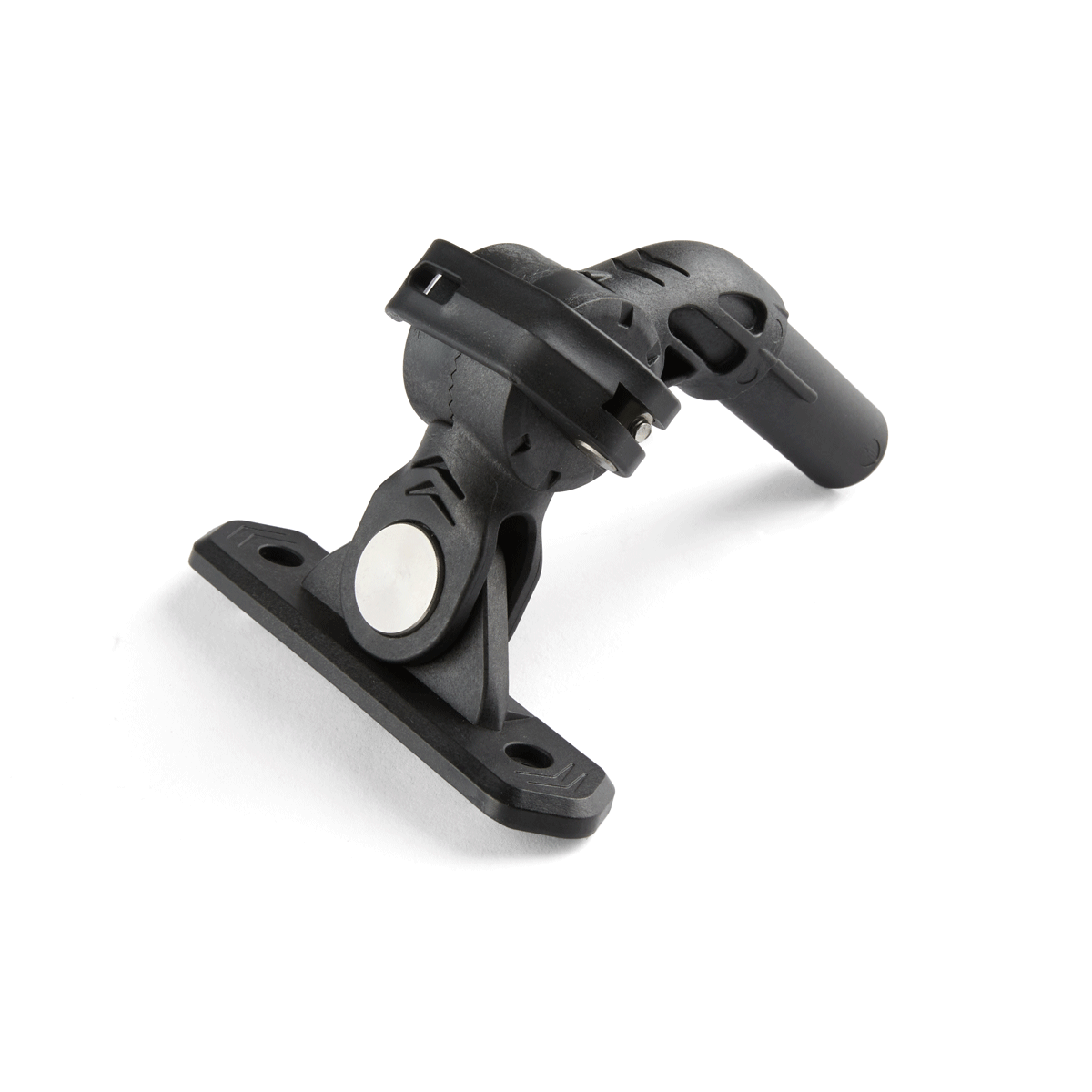

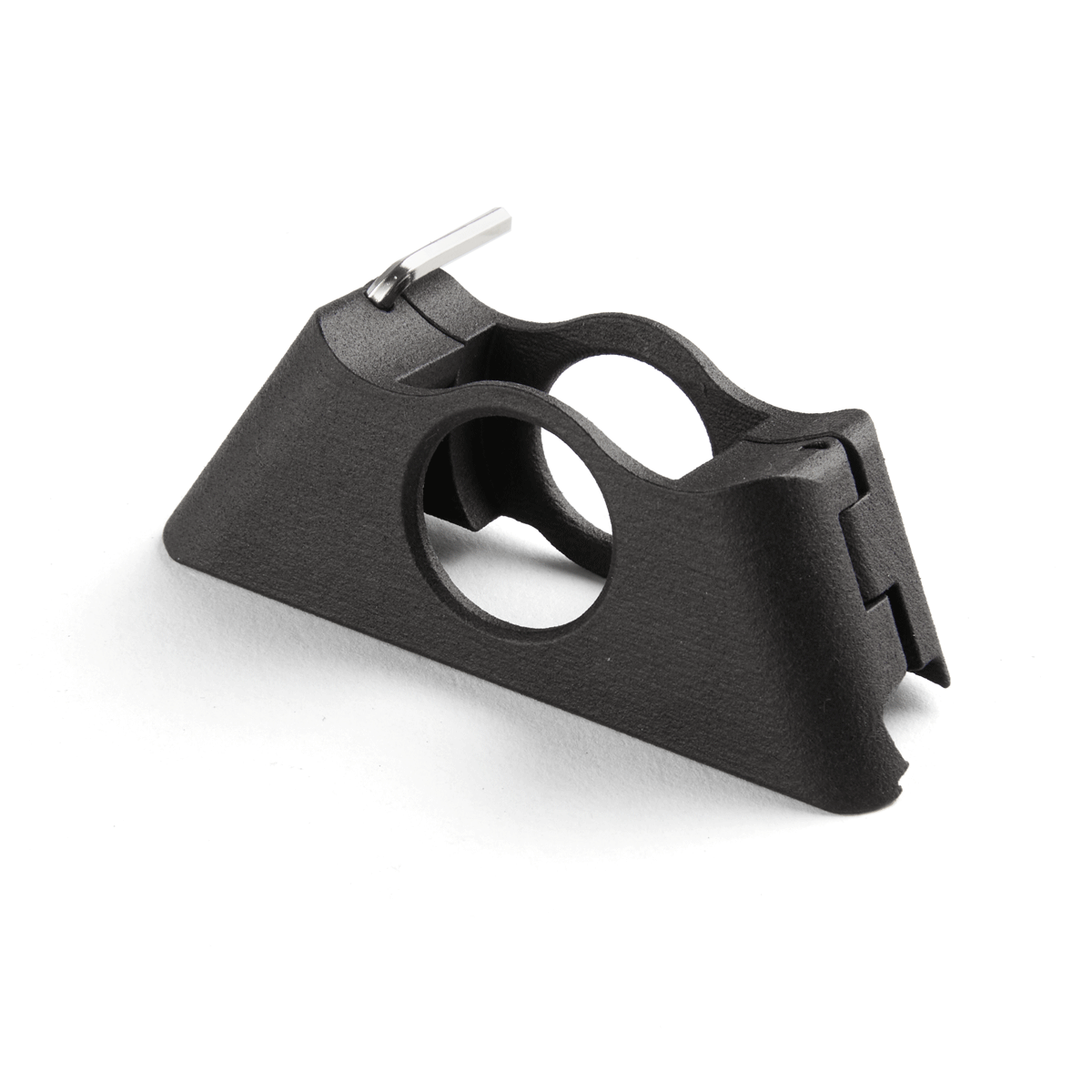

The PIVOT is the swivel between brush and pole: brass bush in a stainless steel sleeve, with unlimited angles, including negative angles for windows below the waist. The aluminum PIVOT LOCK stops the swivel, for a steadier straight-pull on big glass. It comes fitted on the ROCKER LITE MAX 26", DEEP-FRAME ROCKER and SOLAR ROCKER MAX 26", is easy to remove and refit, and is sold separately for other RADIAL brushes, such as the ULTRA-LITE 22" MAX.

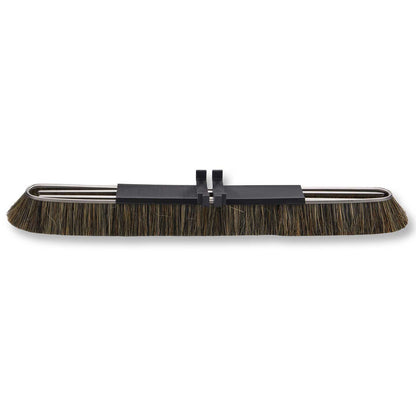

Can I replace the bristles on my REACH-iT RADIAL brush?
Yes. Replacement bristle blades are sold for each brush and size on the RADIAL BRUSHES Spare Parts product page. Each bristle pack is a full replacement set: inner and outer bristles are not sold separately. Bristle replacement is at your own risk: the bristles can distort and be hard to load, so there is no warranty, return or refund on them.
Where is the in-line filter on a REACH-iT brush, and which replacement do I need?
RADIAL LITE, ULTRA-LITE and BEAST LITE: a small filter insert sits in the brass T where the water enters the brush, under the 8:8 or 8:10 pushfit. Replacements come in packs of 3 with a spare 8:10 pushfit. RADIAL BRUSH, RADIAL ROCKER, DEEP-FRAME ROCKER and SOLAR ROCKER: the replacement is now a larger filter outside the brush, in a short piece of Hi-FLO tube you can see through, supplied with new black tubes and a 10:10 pushfit. The filter stops debris from dragged hoses blocking the jets.
How do I replace the ROCKER block on a REACH-iT RADIAL ROCKER or the Velcro block on an ULTRA-LITE?
Both are slide-and-replace kits. Remove one end cap (on a ROCKER, first pull the tube off that end), take the bristles out of that end, and slide the old block out. Reassemble in reverse. Always pull the tube off and push it back onto the rinse bar in a straight line, never at an angle, or the rinse bar can break. Don't over-tighten the bumper screws on the end caps.

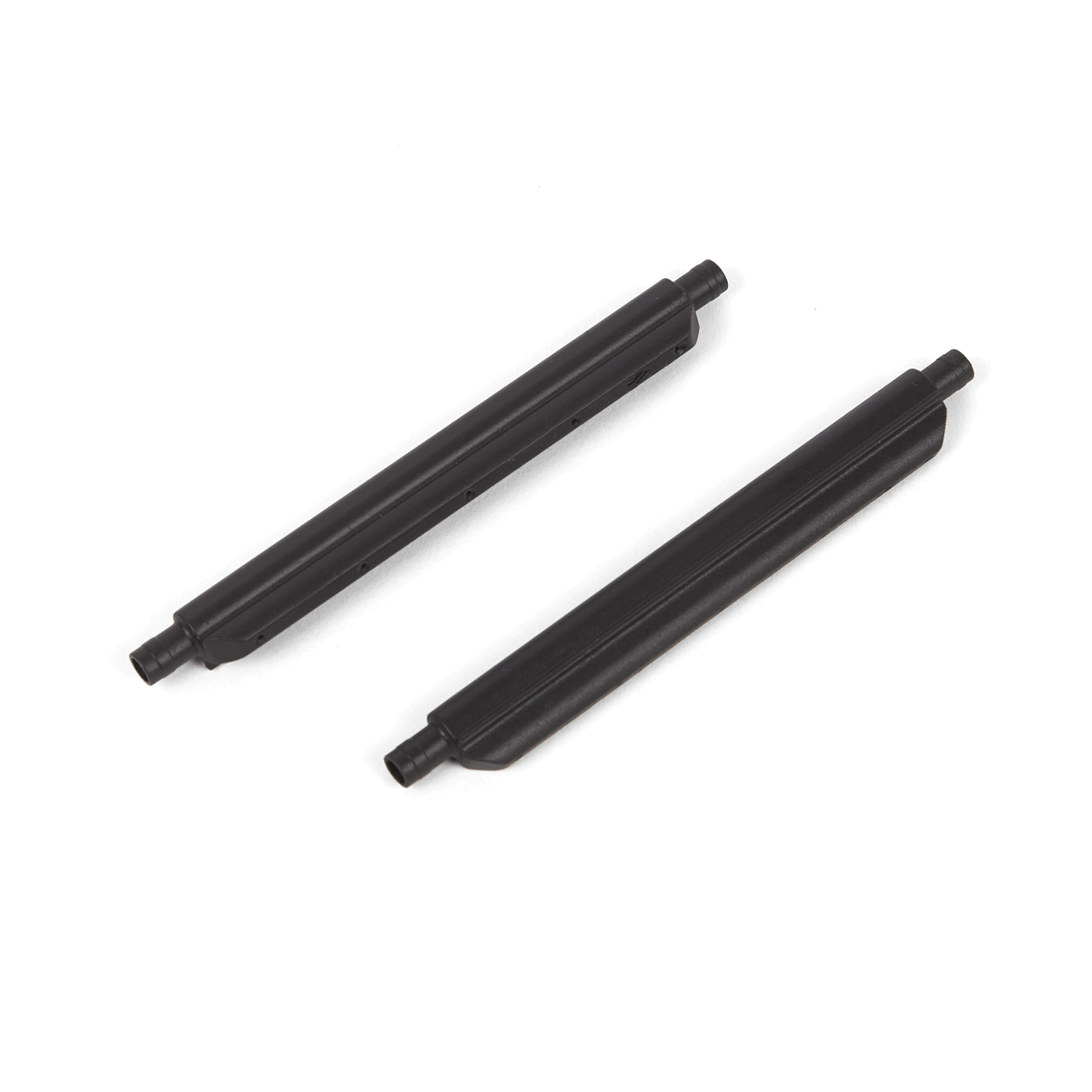

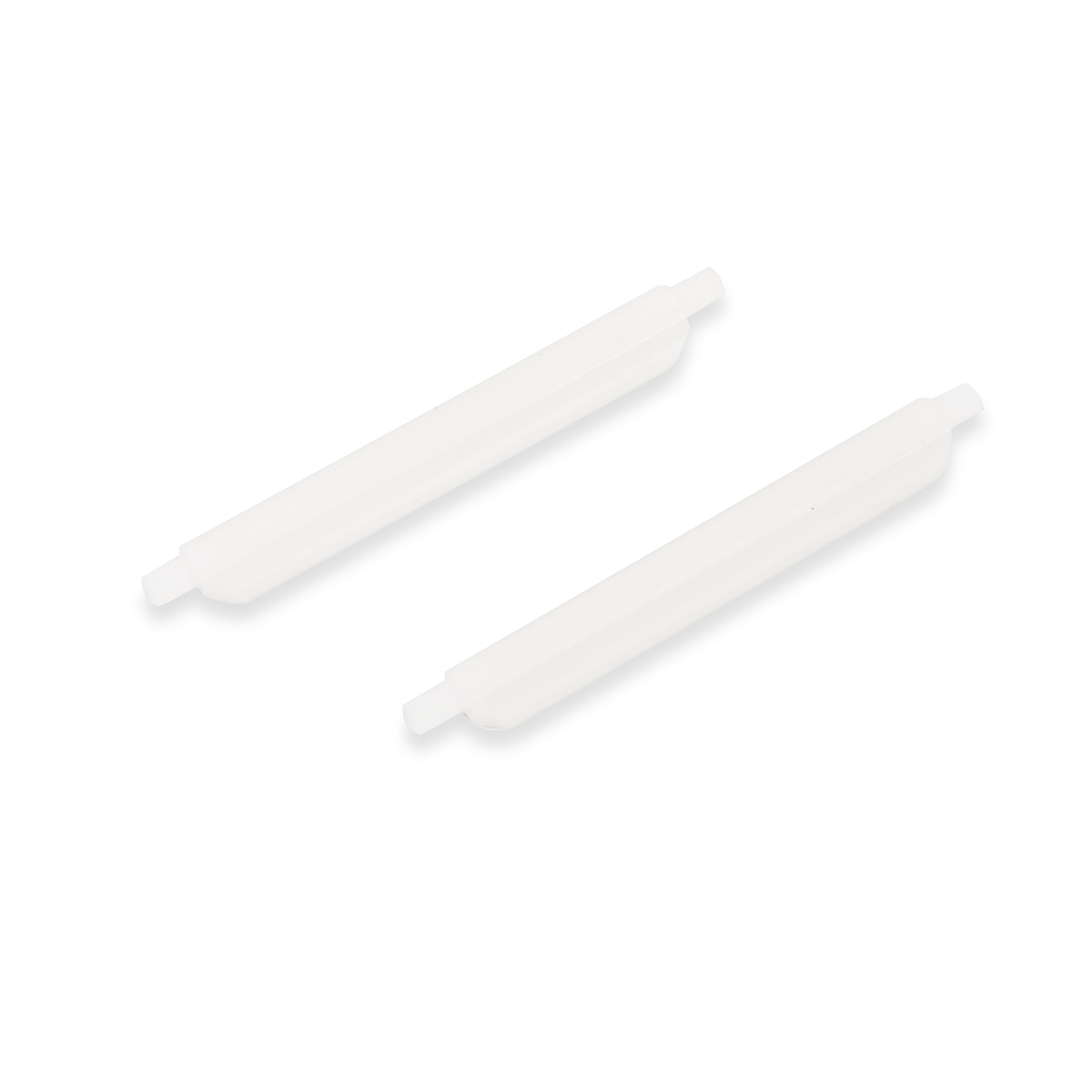

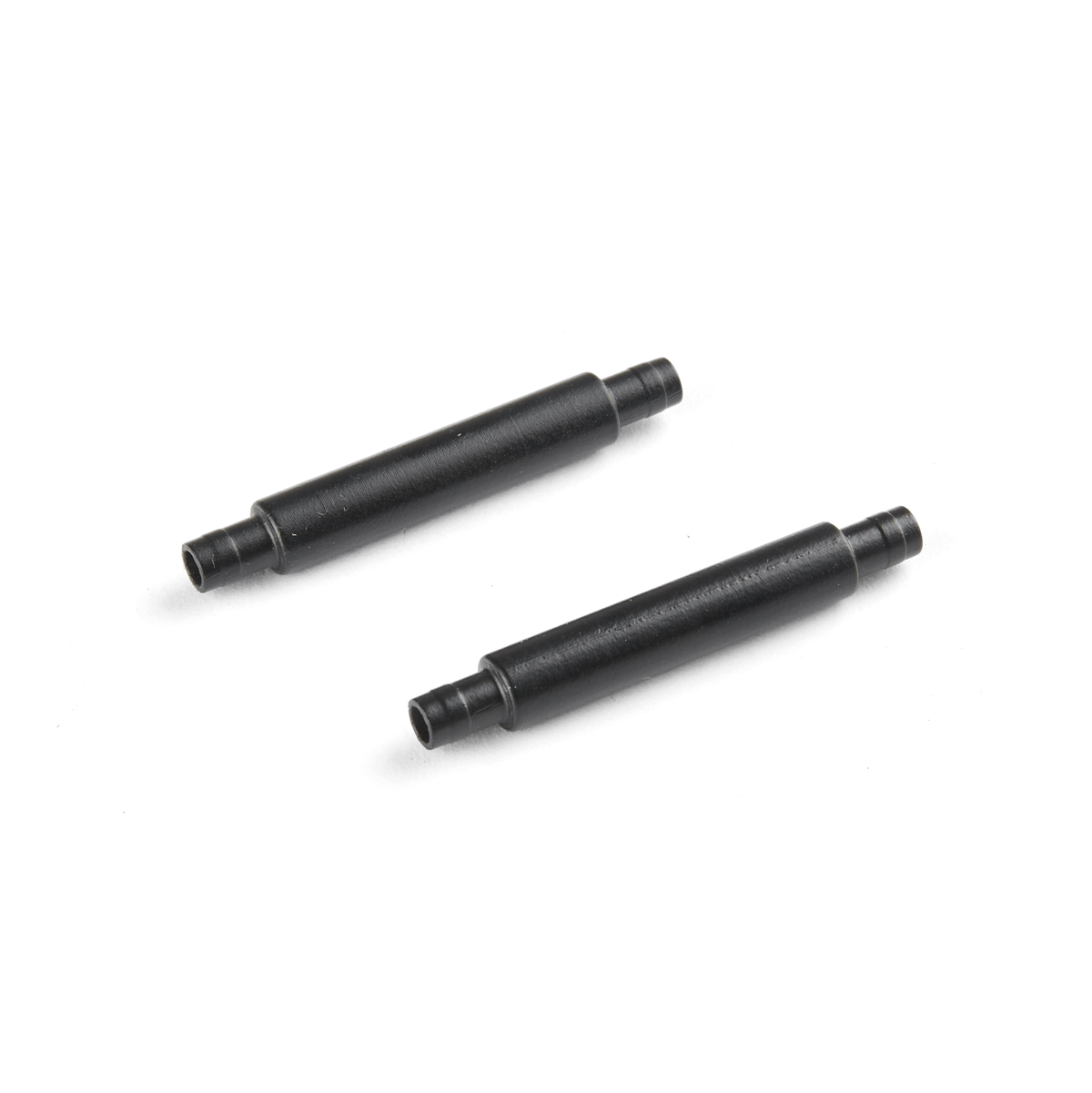

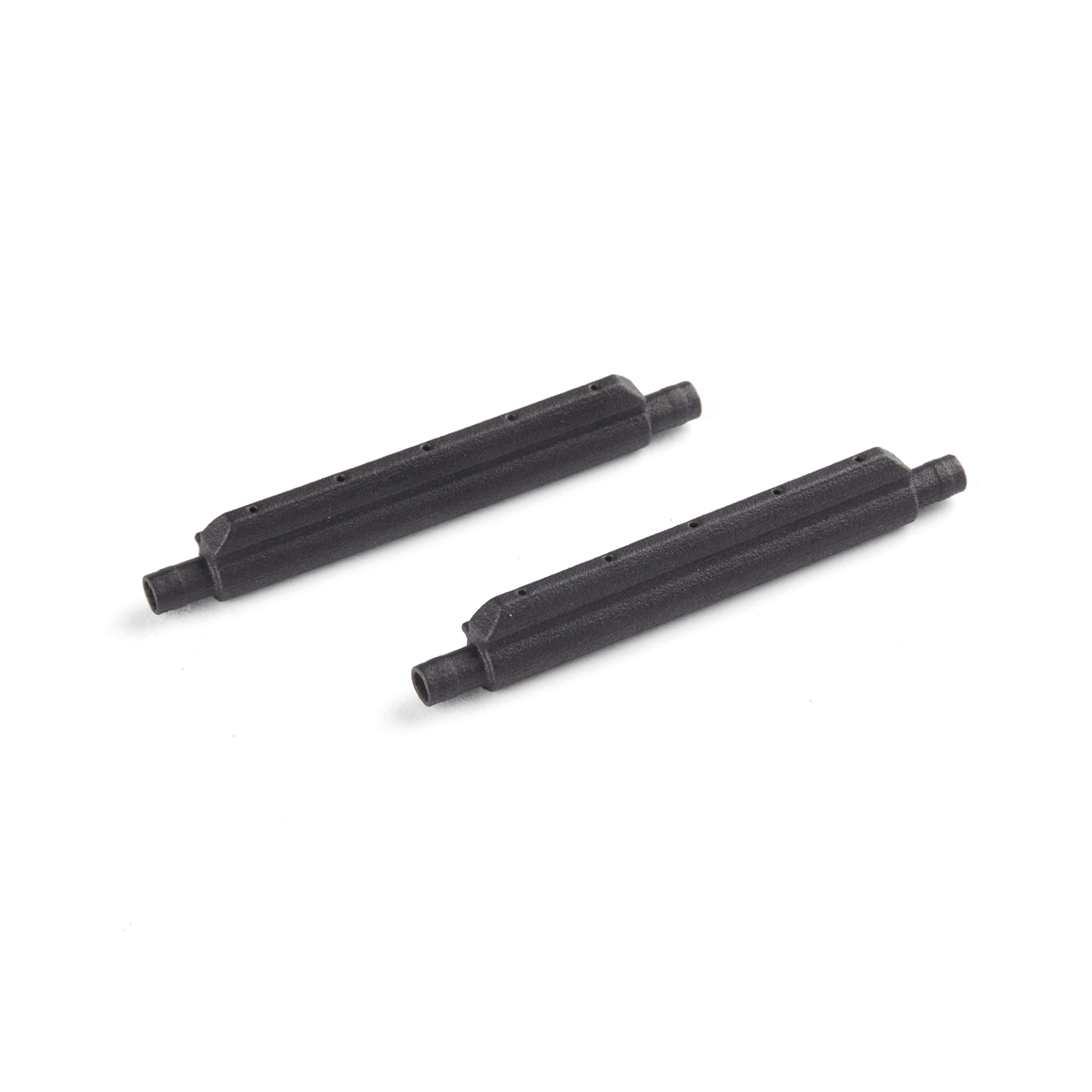

What are base jets on REACH-iT brushes, and do I need them?

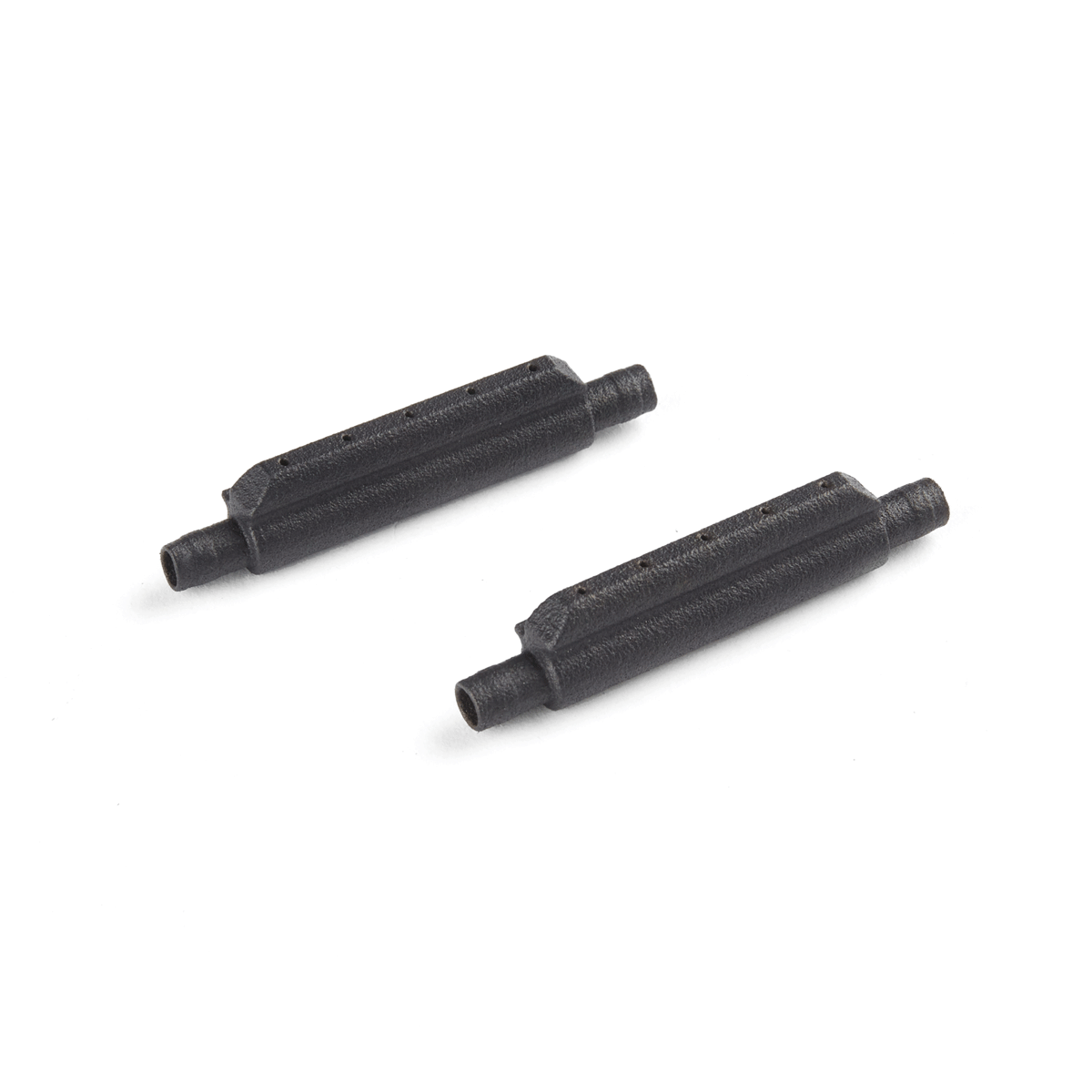

Base jets add water under the brush, so the bottom bristle blade works like a squeegee and pulls dirty water off the glass on the down-stroke, in fewer strokes. They come in the box to fit yourself on the RADIAL BRUSH and RADIAL ROCKER, and 8 come fitted on the DEEP-FRAME ROCKER. Spare base jets and blanks, to close them off, are on the RADIAL BRUSHES Spare Parts product page.
Will it fit my setup?
The details above list the models and sizes this part fits. Not sure? Message us on live chat or email support@futureofcleaning.com with your pole, brush or system and we'll check for you.
What does shipping cost?
Shipping is calculated at checkout by weight and destination. We ship across the U.S. and worldwide.
What's covered by the warranty?
Every REACH-iT product comes with a 1-year manufacturer warranty. Worn scrubs and spare parts are stocked, so you can keep the brush cutting long after that.
