RADIAL HOSE REEL, HOSE and options
SKU 1-007A-00669
ALTITUDE members save up to 30%
Sign in to see your price. See the tiers
1. REEL

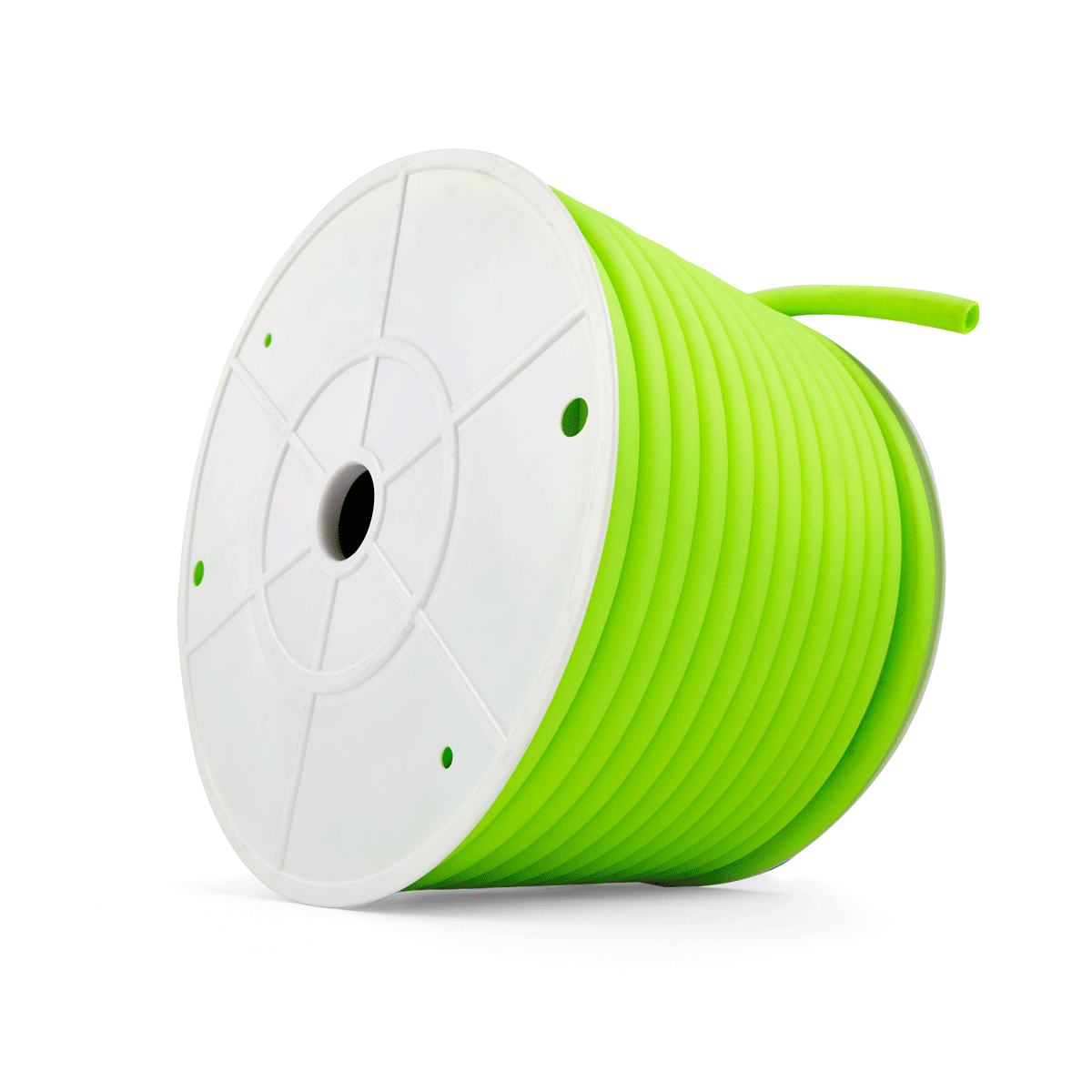

150FT RADIAL HOSE (5/8" OD)

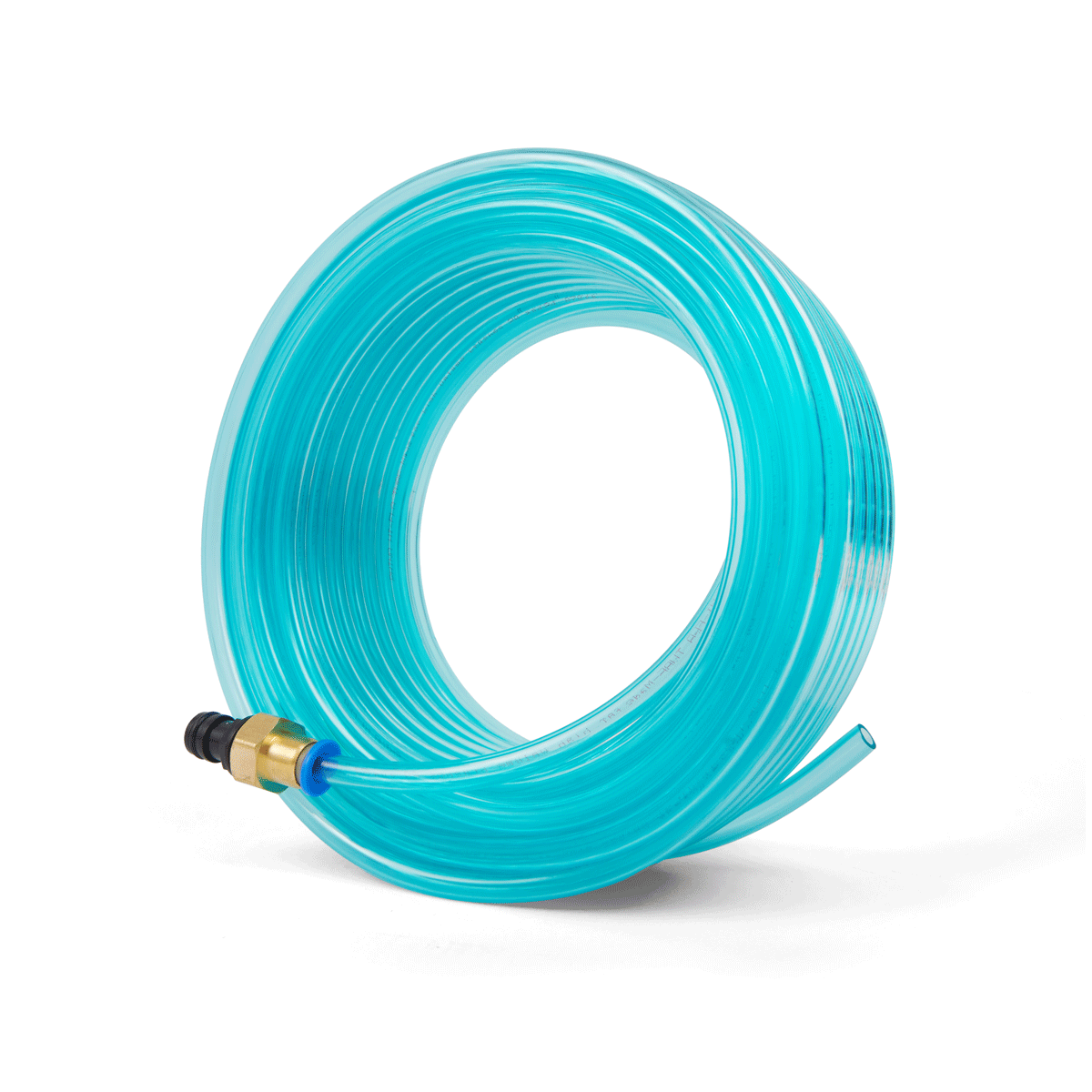

75FT RADIAL HI-FLO TUBE
Shipping U.S. and worldwide, rates at checkout.
DETAILS
NOTE : For delivery in Australia, call Peter Thomas on 0417 979 767.
We do have stock in USA. For international orders, please contact Customer Service first in LIVECHAT for a shipping quote, along with your full order plan.

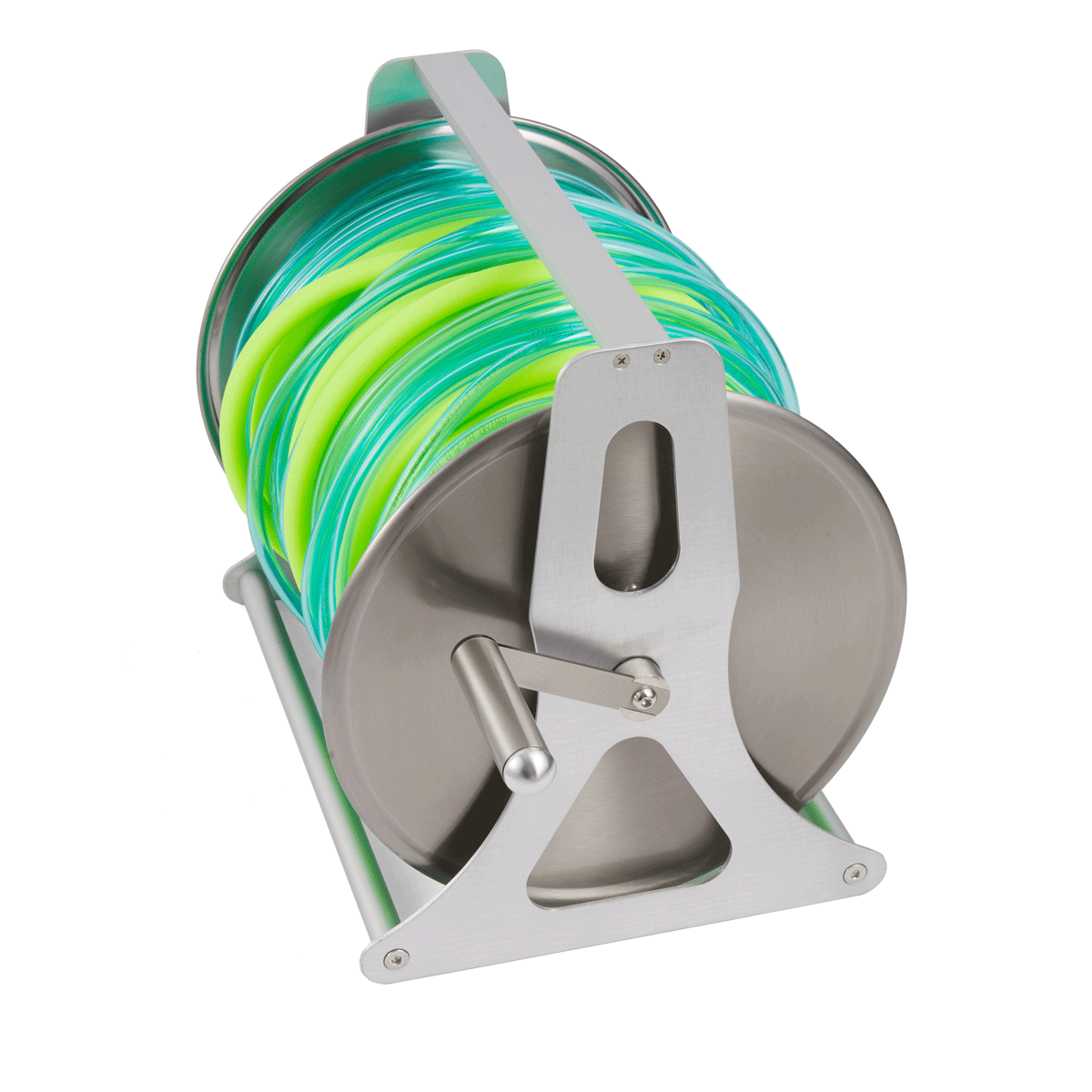

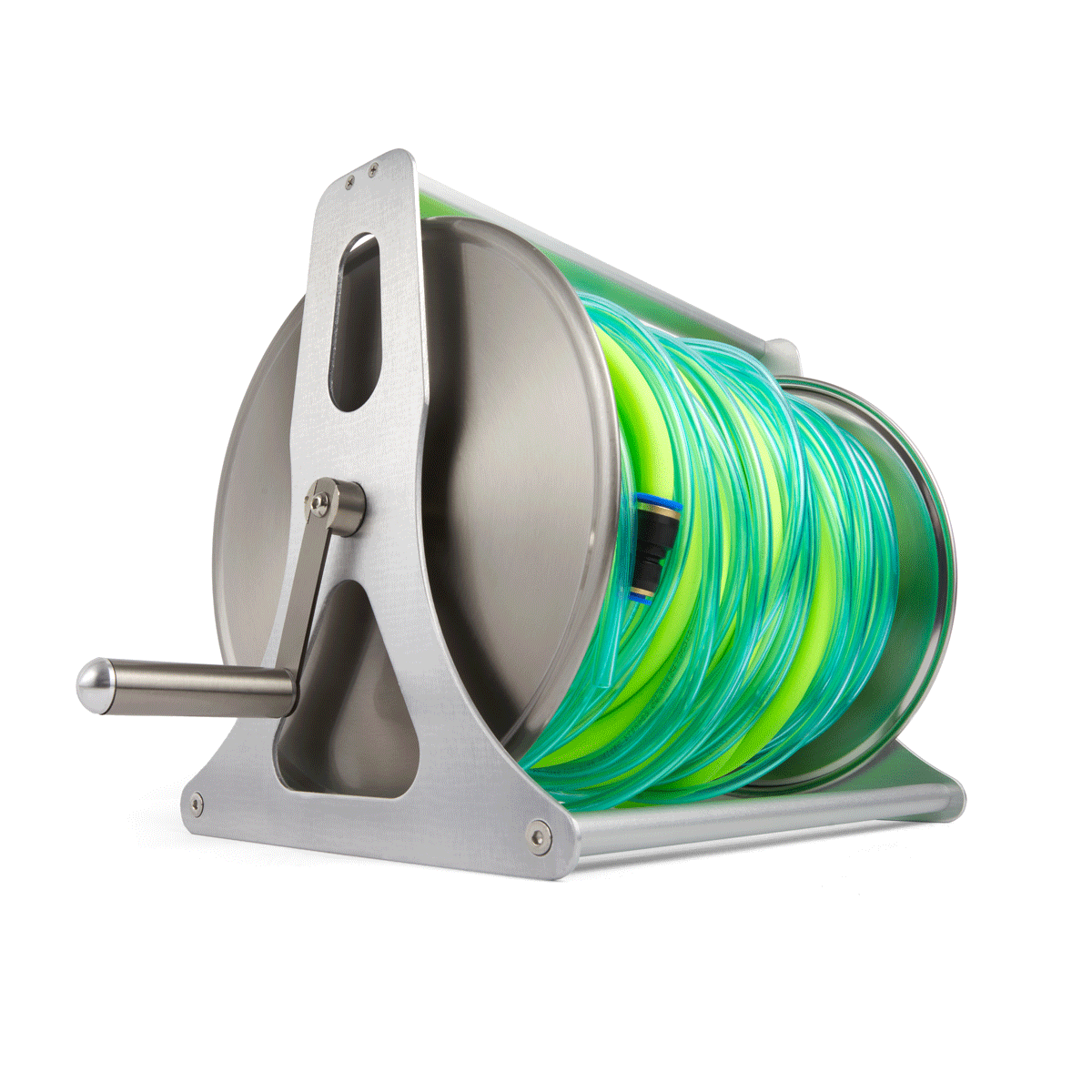

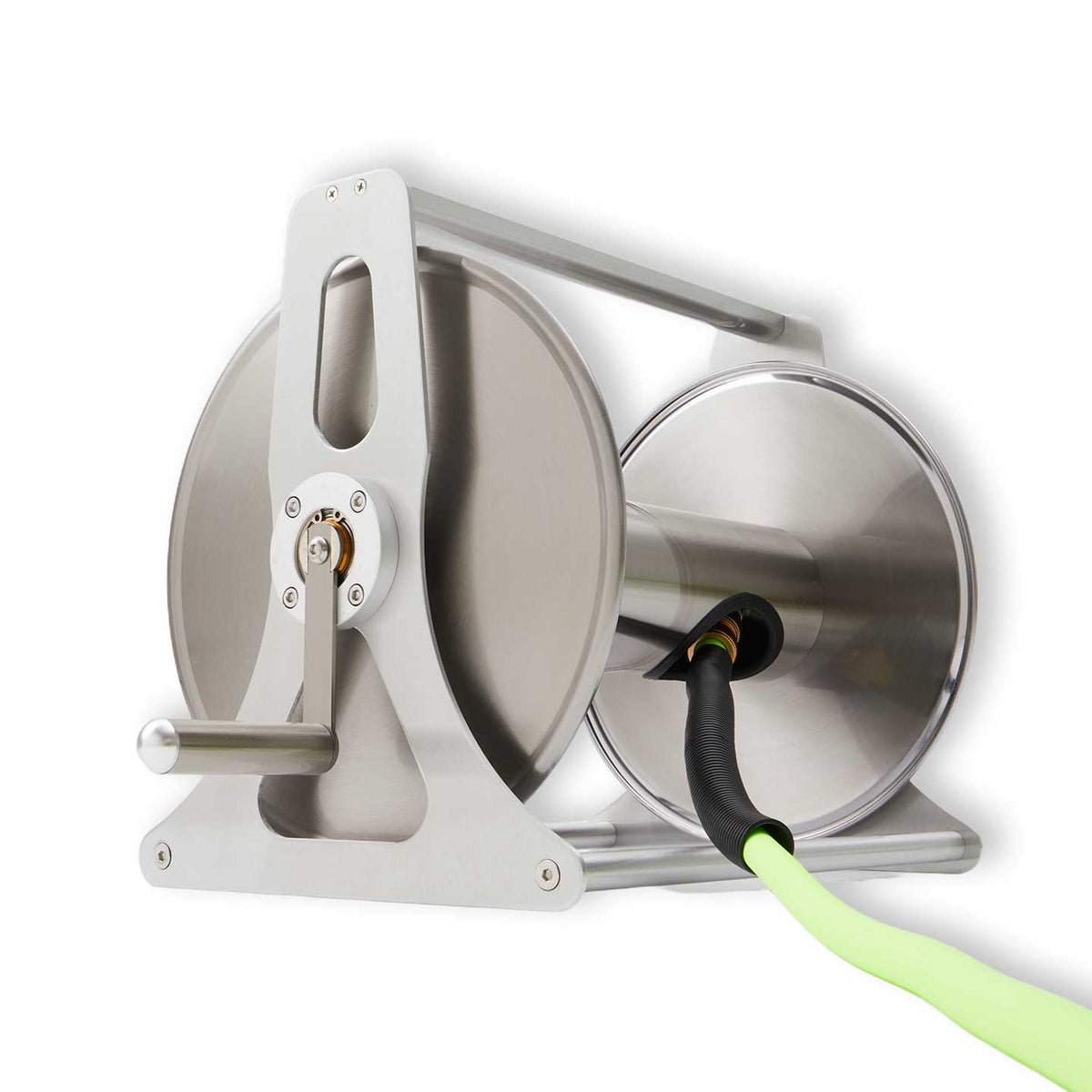

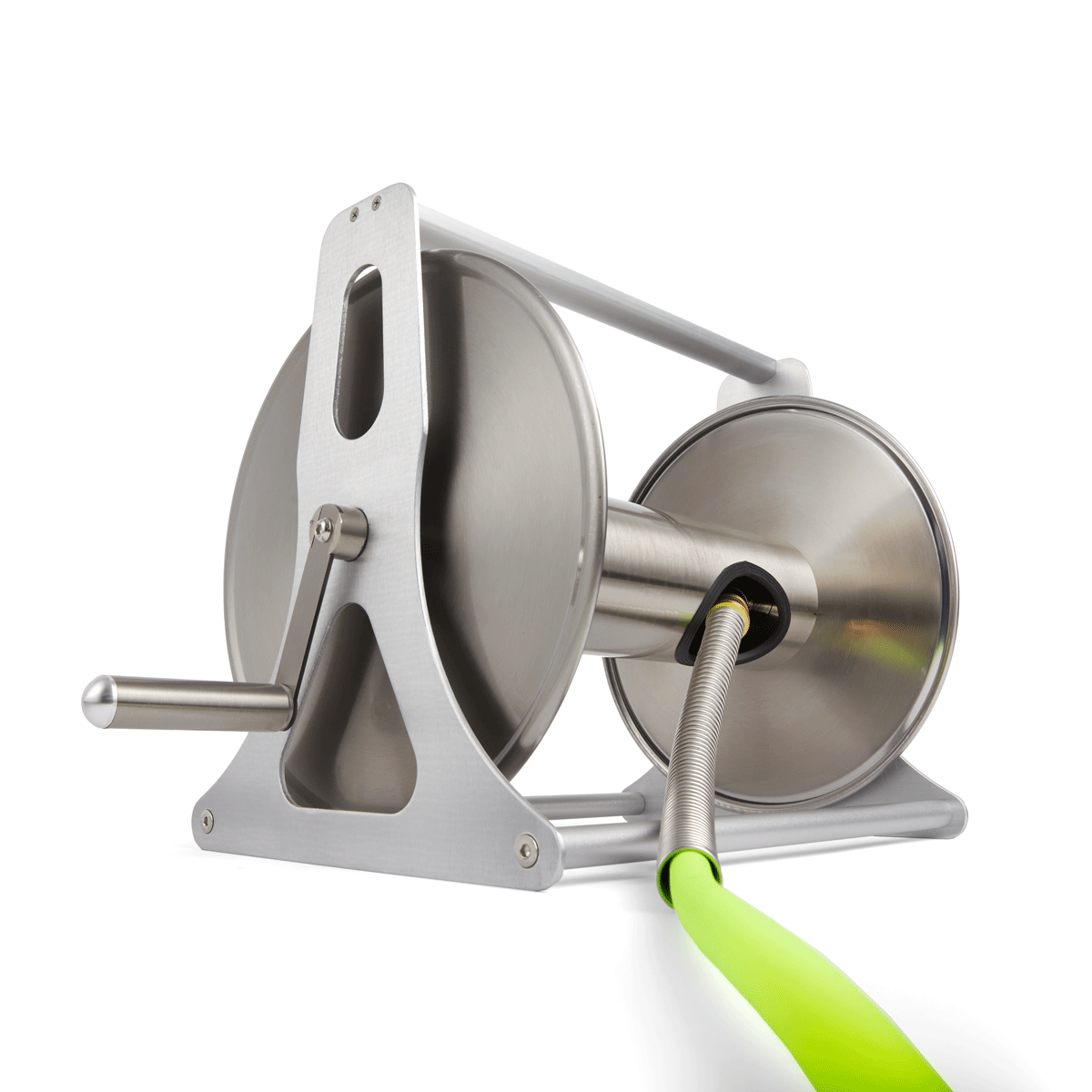

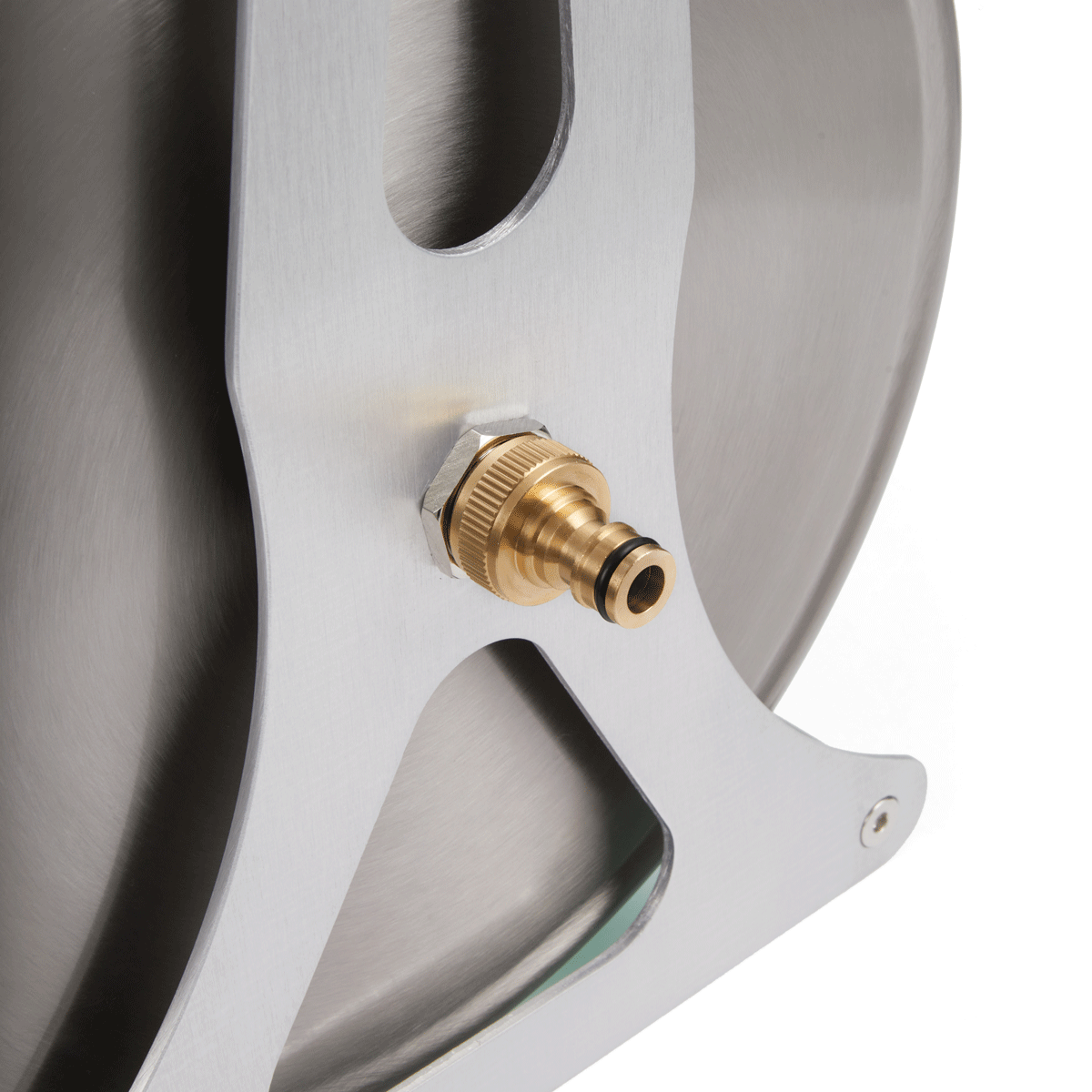

RADIAL HOSE REEL is a stainless steel hose reel with either wall or floor mounts (you can remove the reel easily if you need portability) with a capacity of over 300FT (100M) of HOSE/TUBE.
If you order REEL ONLY, please note that the adapting of the REEL to your personal choice of hose and tube is not an area of customer service that we can gain expertise and therefore we cannot offer it. Should you be unsure, please buy RADIAL REEL pre-fitted with HOSE or HOSE/HI-FLO.
To help understand the meaning of HOSE vs TUBE, a HOSE has multiple layers in the wall (usually two layers of a plastic sandwiching a braid for additional pressure thresholds) whereas a TUBE has a single layer wall of plastic (in the case of HI-FLOW TUBE, it is PU).
We designed all RADIAL Brushes to match the ideal flowrate for maximum performance. This is 1/2GPM / 2LPM (we call this 'HIGH FLOW') for RADIAL and ROCKER BRUSHES and either HIGH FLOW, or LOW FLOW (1/3GPM or 1.5LPM) for RADIAL LITE and RADIAL ULTRA-LITE Brushes.
We designed FLOW RED+ to maximize the flowrate possible from an RO-DI SYSTEM with both membrane technology, and the internal plumbing design. At 100PSI, FLOW RED+ can deliver 1GPM (3.8LPM) with 70ºF (20ºC) water in. Between the filter, and the brush, the hose has 'resistance' that has a cumulative effect to reduce the flowrate - this is why it is so important to have a high flowrate RO-DI system.
Between the FILTER and the BRUSH, we have two challenges.
GRAVITY (5PSI head per 10FT (3.5M) which we cannot change. The effect of cleaning at 40FT is a 'back-pressure' value of 20PSI.
HOSE WALL RESISTANCE : The thinner the INTERNAL DIAMETER (ID) of a hose, the greater the resistance in the hose. The longer the hose, the greater the cumulative effect of the resistance.
With this in mind, REACH-iT have developed a balanced water delivery hose for long run applications. The outer diameter is 5/8" (16MM), and we can calculate the ideal ID of hose and tube to deliver the target 1/2GPM at the RADIAL BRUSH.
This is the science behind RADIAL HOSE - its science - and, to make it better, it is UV resistant, non-kink, and high-vis.
€135,76
No / Yes / No
FAQ
What flow rate does a REACH-iT RADIAL brush need from a pure water system?
RADIAL and ROCKER brushes are designed for "high flow": 1/2 GPM / 1.9 LPM at the brush. RADIAL LITE and RADIAL ULTRA-LITE brushes run on high flow or "low flow": 1/3 GPM / 1.3 LPM. Long hose runs and height reduce flow (about 5 PSI of back-pressure per 10 ft / 3 m of height), which is why REACH-iT pure water systems are built for high output.
What's the difference between REACH-iT RADIAL HOSE, HI-FLO TUBE and RHINO-TUBE?
RADIAL HOSE: 5/8" / 16 mm OD, multi-layer braided hose for long runs from the pure water system, UV resistant, non-kink, high-vis. RADIAL HI-FLO TUBE: 3/8" / 10 mm OD single-wall PU tube, for along the ground and up the pole to RADIAL brushes. RHINO-TUBE: 5/16" / 8 mm OD, very light, for low flow-rate tools.
How do I keep good flow at the brush on long hose runs with REACH-iT hose and tube?
Use the shortest practical length, and the widest practical bore. Over long distances, step down in size: for example 150 ft / 46 m of 5/8" / 16 mm RADIAL HOSE, then 150 ft / 46 m of 3/8" / 10 mm HI-FLO. The target is 1/2 GPM / 1.9 LPM at a RADIAL brush.
What is the REACH-iT RADIAL HOSE REEL?

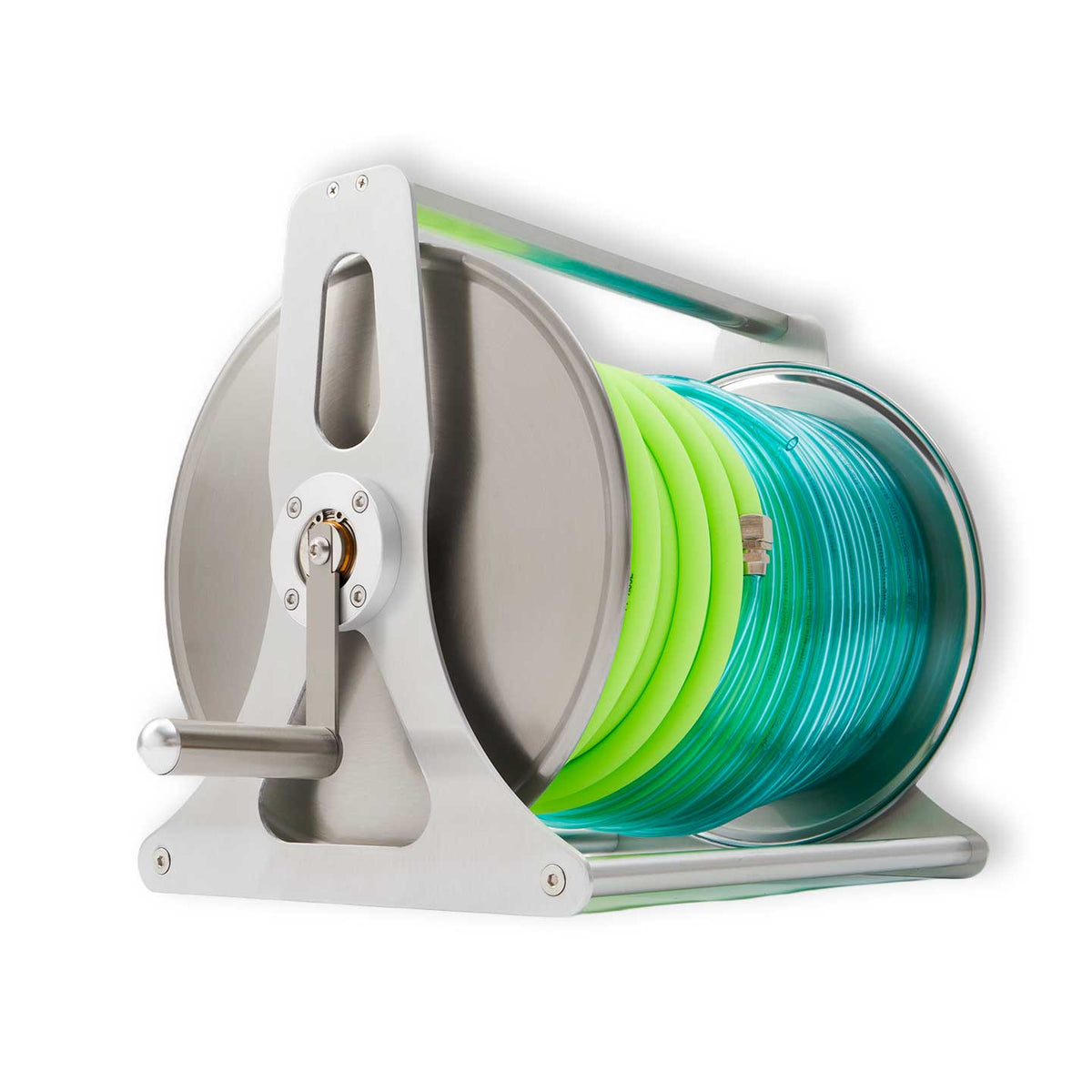

A stainless steel hose reel with wall or floor mounts. The reel lifts off the mount easily if you need it portable. It holds over 300 ft / 91 m of hose and tube. Buy it on its own, or pre-fitted with 150 ft / 46 m of RADIAL HOSE and 75 ft / 23 m of HI-FLO TUBE.
Can I fit my own hose to the REACH-iT RADIAL HOSE REEL?
You can, but REACH-iT can't help adapt the reel to other hoses and tubes. If you're unsure, buy the RADIAL REEL pre-fitted with RADIAL HOSE, or with RADIAL HOSE and HI-FLO TUBE.
Will it fit my setup?
The details above list the models and sizes this part fits. Not sure? Message us on live chat or email support@futureofcleaning.com with your pole, brush or system and we'll check for you.
What does shipping cost?
Shipping is calculated at checkout by weight and destination. We ship across the U.S. and worldwide.
What's covered by the warranty?
Every REACH-iT product comes with a 1-year manufacturer warranty. Worn scrubs and spare parts are stocked, so you can keep the brush cutting long after that.
